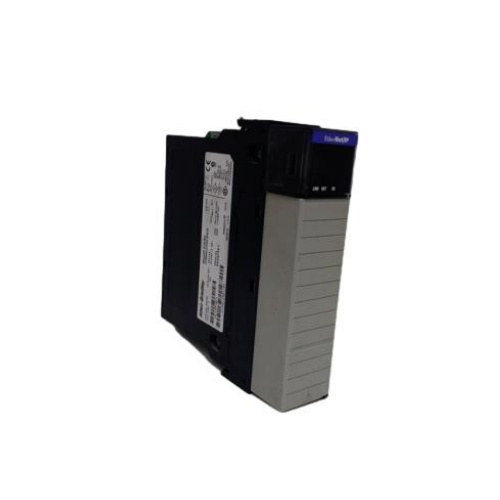

The 1756-ENBT/A is a high-performance Ethernet communication module in the Allen-Bradley ControlLogix family, which is mainly used to connect ControlLogix or CompactLogix controllers to EtherNet/IP networks.
1. Functions and Features
The main function of 1756-ENBT/A module is to realize data communication via Ethernet/IP protocol, which supports high-speed data transmission and various network protocols.
Its features include:
1. High-speed data transmission: It supports 10/100 Mbps Ethernet communication rate, which can meet the demand for real-time and reliability in industrial automation.
2. Multi-protocol support: In addition to Ethernet/IP, other protocols such as Modbus TCP and DeviceNet can be supported through software configuration, thus enhancing the flexibility of the module.
3. High reliability: industrial grade design with good anti-interference ability and stability, suitable for harsh industrial environments.
4. Easy Installation and Configuration: The module adopts DIN rail mounting, which can be installed without special tools, and can be quickly configured by RSLinx software.
2. Technical Parameters
Interface type: RJ45 for Ethernet connection.
Operating voltage: 24 VDC.
Operating temperature range: -5% to 95% relative humidity.
Number of ports: 1 Gigabit Ethernet port.
Maximum number of connected devices: 64 nodes.
3. Application Scenarios
The 1756-ENBT/A module is widely used in industrial automation, especially in scenarios that require high-speed data transmission and reliable communication.
For example:
1. Distributed Control System (DCS): As the core communication module, it connects multiple devices to realize data exchange and control.
2. Robot system: Used in conjunction with a robot controller to realize high-speed data communication.
3. Factory automation : Used to connect sensors, actuators, and other industrial equipment to build an efficient production network.
4. Number of ports: 1756-ENBT/A is a single-port design, while 1756-EN2T and 1756-EN2TR offer a dual-port design for scenarios that require more network connectivity.
4. Installation and Configuration:
Installation: Insert the module into the DIN rail, ensuring a secure connection.
Configuration: Set communication parameters such as IP address and communication driver (e.g. AB_ETH-1 or AB-ETHIP-1) via RSLinx software.
Commissioning: Use the RSLogix 5000 software for I/O configuration and message path setup.
5. Summary
The 1756-ENBT/A is a high-performance Ethernet communication module with a wide range of applications in industrial automation thanks to its high-speed data transmission capability, multi-protocol support and high reliability.
