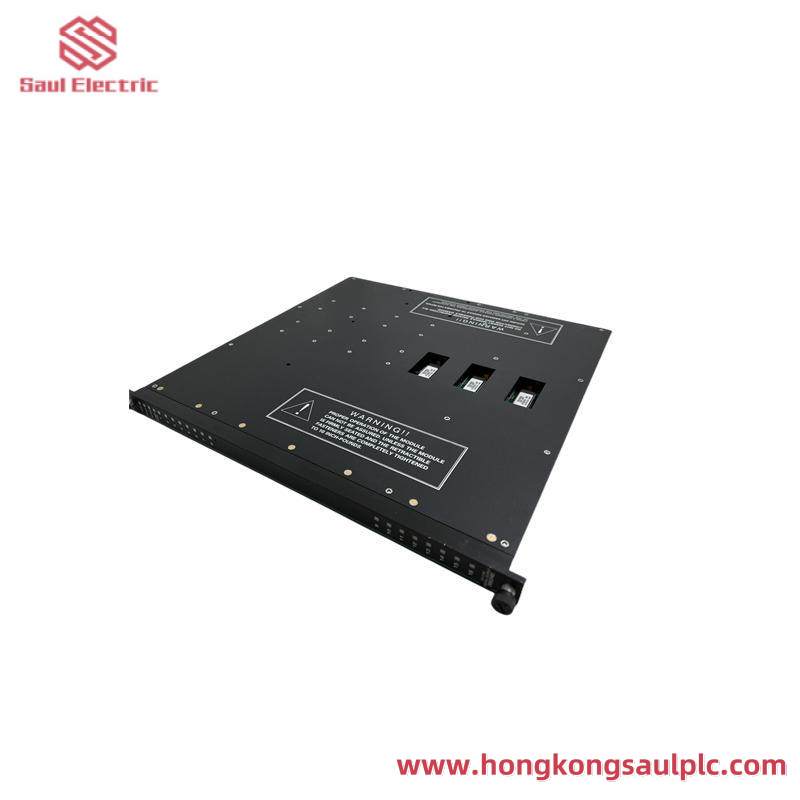

TRICONEX 3604E High-Performance Digital Output Modules for Industrial Control

The TRICONEX 3604E is a TMR (Triple Mode Redundancy) digital output module commonly used in safety-critical applications such as Safety Instrumented Systems (SIS) in the petrochemical, nuclear and other industries.

Key Features:
TMR ARCHITECTURE: A triple-module redundancy design is used to increase the reliability and availability of the system. This means that three identical circuits inside the module work in parallel and output results by majority voting, allowing the system to operate normally even if one of the circuits fails.
Digital Output: Used to output digital signals to control actuators on site, such as valves, relays, etc.
Optical isolation: The output channel usually adopts optical isolation to improve the anti-interference ability and safety.
24VDC Power Supply: Usually powered by 24VDC power supply.
16 Outputs: Typically 16 output channels.

Manufacturer: Triconex (now acquired by Schneider Electric)
Model Number: 3604E
Product Type: TMR Digital Output Module
Rated Voltage: 24 VDC
Number of Output Points: 16
Isolation method: Optical isolation

Application Areas:
Oil & Gas: e.g. refineries, chemical plants, offshore platforms, etc.
Nuclear: Safety control systems for nuclear power plants.
Chemical: For control and safety protection of various chemical processes.
Other safety-critical applications: Any industrial field where high reliability and safety are required.

The TRICONEX 3604E digital output modules are meticulously designed for industrial automation systems, offering unparalleled reliability and efficiency. They are specifically tailored to withstand demanding environments, ensuring seamless operation in a variety of industrial settings.

Equipped with state-of-the-art technology, these modules provide precise control over actuators and other devices, enabling accurate responses to process changes. Their robust construction ensures longevity and minimal maintenance requirements, reducing downtime and operational costs.

With an operating voltage of 24 VDC, the 3604E series is compatible with a wide range of industrial systems, facilitating easy integration into existing infrastructure. The 16-point TMR (Triple Modular Redundancy) configuration offers fail-safe operations, guaranteeing system reliability even in critical applications.

Crafted from high-quality materials, these modules are built to last, ensuring durability and consistent performance over extended periods. They are meticulously tested to meet the stringent standards of the TRICONEX brand, providing users with peace of mind and confidence in their operation.

Installation and setup are straightforward, thanks to user-friendly interfaces and comprehensive documentation. The TRICONEX 3604E modules are compatible with leading PLC (Programmable Logic Controller) platforms, making them a versatile choice for integrating into complex control systems.
