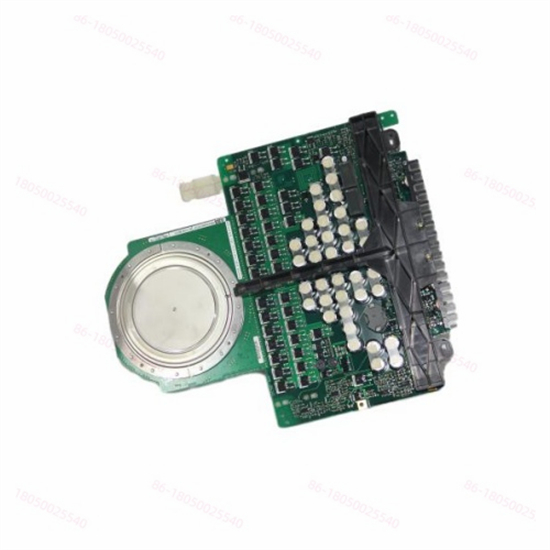

5SHY3545L0009

Main functions and features
High-voltage high-current: able to withstand high-voltage high-current, suitable for high-power inverter system.
Fast switching: fast switching speed, can improve the response speed of the system.
Low Loss: Reduced conduction voltage, low loss, improves the efficiency of the system.
High reliability: Adopting advanced packaging technology, it has good reliability.

Application Scenarios
High-voltage inverter: Mainly used to drive large motors, such as wind power generation, metallurgy and other fields of motor drive.
Static reactive power compensation device (SVC): Used to improve the power factor and stability of the power grid.
DC Transmission: Used for current converter of DC transmission system.

Typically, the ABB 5SHY3545L0009 module consists of several IGCT chips, as well as the necessary drive circuits, protection circuits and so on. The modules are available in a variety of packages, which can be selected according to the needs of different applications.

Precautions
Heat dissipation: IGCT modules generate a lot of heat when working, and need good heat dissipation measures.
Driver circuit: The design of the driver circuit has a great impact on the performance of the module, and it is necessary to select the appropriate driver circuit according to the specific application.
Protection circuit: In order to protect the module, need to design over-current, over-voltage, short-circuit protection circuit.
Installation: Installation needs to pay attention to anti-static, to avoid damage to the module.

If you need to purchase or know more about this product, you can contact HONG KONG SAUL ELECTRICAL LIMITED’s channel directly for a detailed quotation and service support.
