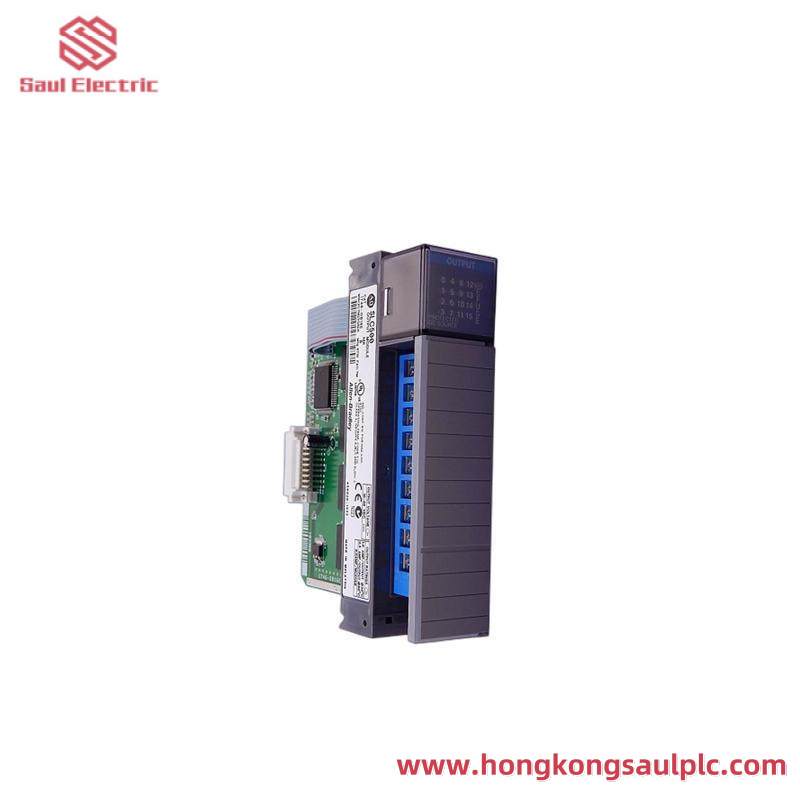

AB 1746-OB16E Digital Output Module for Industrial Automation

Manufacturer:Allen Bradley

Model Number:1746-OB16E

Module Type:Digital Output Module

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Current Rating:1 MA

Backplane Current Rating:0.28 A

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Communication Circuit Isolation:500 VDC

Backplane Isolation:1500 VAC

Processor Compatibility:SLC 500

Temperature Range:0 – 60°C

Environmental Humidity Range:5 – 95%

    The Allen-Bradley 1746-OB16E is a robust and dependable digital direct current output module designed for seamless integration into industrial automation systems.

     With its sixteen channels, this module provides precise and reliable control signals, making it an ideal choice for complex machinery and manufacturing environments.

     Its open-type enclosure ensures easy installation and maintenance, while its chassis mounting option enhances flexibility in various settings.

     Operating within a wide temperature range from 0 to 60 degrees Celsius, the module is well-suited for harsh industrial conditions.

     The 1746-OB16E boasts a comprehensive set of specifications, including high voltage ranges and excellent isolation features, ensuring stable performance and longevity.

     Whether you’re upgrading existing systems or designing new ones, the Allen-Bradley 1746-OB16E stands out as a top-performing solution for all your industrial automation needs.
