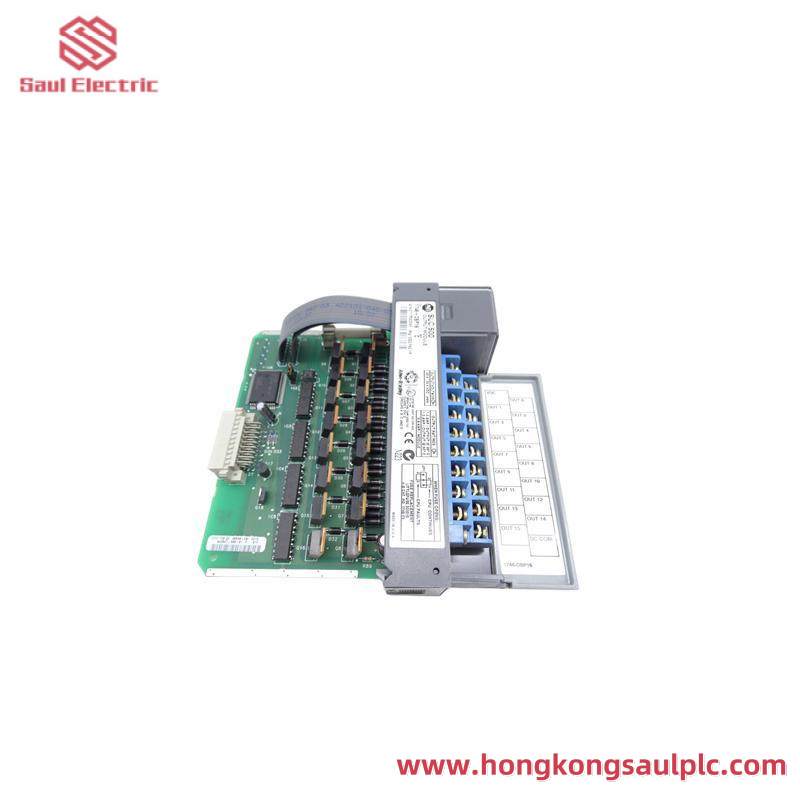

AB 1746-OBP16 | Digital DC Output Module – Allen Bradley

Number of Channels:16

Input Voltage (DC):24V

Output Voltage Range (DC):10-50V

On-State Voltage Drop:1.2V

Off-State Leakage Current:1mA

Load Capacity:1mA

Continuous Current Per Output (A):0.25A at 60°C

Continuous Current Per Module (A):4A at 60°C

Isolation (DC):Communication circuits: 500VDC, Backplane: 1500VAC

Processor Type:SLC 500

Enclosure Type:Open Type

Mounting Method:Chassis

Temperature Range:-40°C to 70°C

Environmental Conditions:5% to 95% non-condensing humidity

    Engineered for reliability and precision, the AB 1746-OBP16 module is a critical component for advanced industrial automation systems. This state-of-the-art module offers 16 digital outputs, each capable of delivering tailored voltage levels and currents to suit diverse industrial applications.

    Featuring a robust design with high isolation capabilities, it ensures minimal interference between circuits, safeguarding the integrity of your system’s operation. The on-state voltage drop is minimized to ensure efficient power utilization, enhancing system performance.

    Equipped with an advanced processor, the module integrates seamlessly with Allen Bradley’s SLC 500 series, enabling sophisticated control over processes. Its open-type enclosure facilitates easy integration into existing systems, while the chassis mounting option supports versatile installation scenarios.

    Withstanding temperatures from 0 to 60°C and operating within a 5 to 95% non-condensing relative humidity range, this module is built to withstand harsh industrial environments. Its comprehensive specifications make it a preferred choice for applications requiring high reliability and precision.

    For optimal performance, the AB 1746-OBP16 Digital DC Output Module is designed with continuous current ratings that cater to both backplane and individual output needs, ensuring consistent power delivery under varying operational conditions. It is a testament to Allen Bradley’s commitment to innovation and quality in industrial automation solutions.
