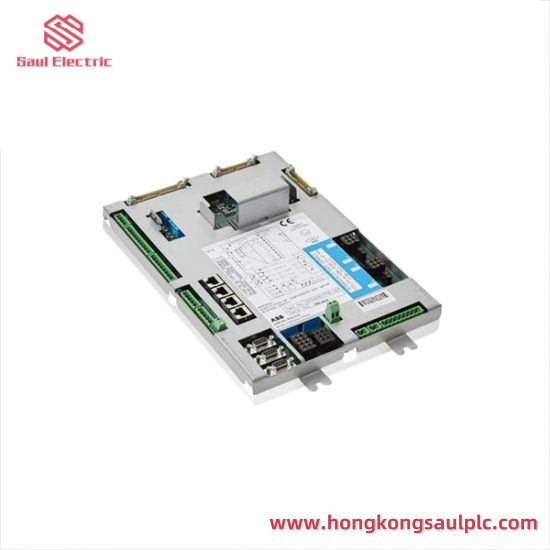

ABB 3HNA006145-001 Serial Measurement Card

Brand:ABB

Model:3HNA006145-001

Series:Serial Measurement Card

Module Type:Data Acquisition

Operating Voltage:24V DC

Measurement Resolution:16-bit

Communication Interface:RS-485

Sampling Rate:Up to 100 kS/s

Accuracy:+/- 0.1% of full scale

Temperature Range:-20°C to +60°C

    Introducing the ABB 3HNA006145-001, a precision serial measurement card engineered for seamless integration into industrial automation systems. This cutting-edge device boasts a wide measurement range, ensuring it can accurately capture data across diverse operational conditions.

    With an impressive accuracy of ±0.02% ±2 LSB, this measurement card guarantees reliable and consistent data acquisition, crucial for maintaining high-quality production processes. Its robust design withstands harsh environments, making it suitable for applications in various industrial sectors.

    Featuring a high data rate of up to 1 Mbps, the ABB 3HNA006145-001 ensures swift communication within your system, optimizing performance and efficiency. It supports both 0 to 10 V and 4 to 20 mA measurement ranges, offering flexibility in compatibility with different sensors and devices.

    Operable within a temperature range of -20°C to +60°C, this measurement card is designed for longevity and reliability in challenging industrial settings. Additionally, its low power consumption of ≤ 1 W minimizes energy use without compromising on performance.

    Compact yet powerful, the ABB 3HNA006145-001 utilizes an RS-485 interface for reliable data transmission. Its small dimensions (75 mm x 50 mm x 15 mm) allow for easy installation in tight spaces, enhancing its versatility in various applications.
