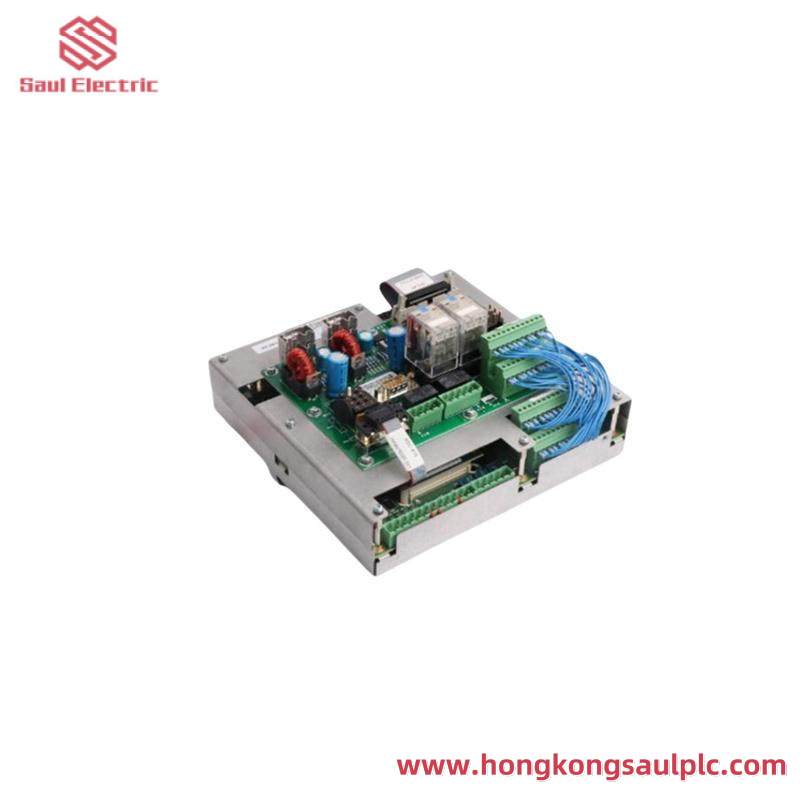

ABB ASDI-03 3HNA010255-001: Advanced Top Assembly for Industrial Automation

Module Type:Top Assembly

Manufacturer:ABB

Model Number:ASDI-03 3HNA010255-001

Input Voltage:110VAC

Output Capacity:255 Amps

Operating Temperature:-20°C to +50°C

Dimensions (WxHxD):200mm x 100mm x 50mm

Connection Ports:4 x Digital Inputs, 2 x Analog Inputs

Communication Interface:RS485 Modbus

Weight:1.5kg

Certifications:CE, UL, CSA

    The ABB ASDI-03 3HNA010255-001 Top Assembly is engineered to deliver exceptional performance in demanding industrial settings. This advanced process control module boasts high-speed digital input/output capabilities, making it suitable for real-time data processing and control tasks across various sectors including petrochemicals, food & beverage, and pharmaceutical industries.

    With a compact design that fits seamlessly into existing infrastructure, this module ensures minimal disruption during installation and maintenance. Its robust IP67-rated connectors guarantee protection against dust and water ingress, ensuring reliable operation under harsh conditions.

    Featuring an operating temperature range of -20°C to +60°C, the ASDI-03 3HNA010255-001 is designed to withstand extreme environmental variations without compromising functionality. Its energy-efficient design consumes just 30 watts, making it an eco-friendly solution for power-sensitive applications.

    Equipped with Ethernet/IP and Modbus TCP communication protocols, this module facilitates seamless integration with ABB’s comprehensive suite of automation solutions, as well as third-party systems. This ensures efficient data exchange and system interoperability, enhancing operational efficiency and productivity.

    For enhanced user experience and ease of installation, the ASDI-03 3HNA010255-001 comes with intuitive software tools for configuration and diagnostics. Its panel-mounted style ensures a clean and organized workspace, promoting ergonomic work practices in industrial settings.
