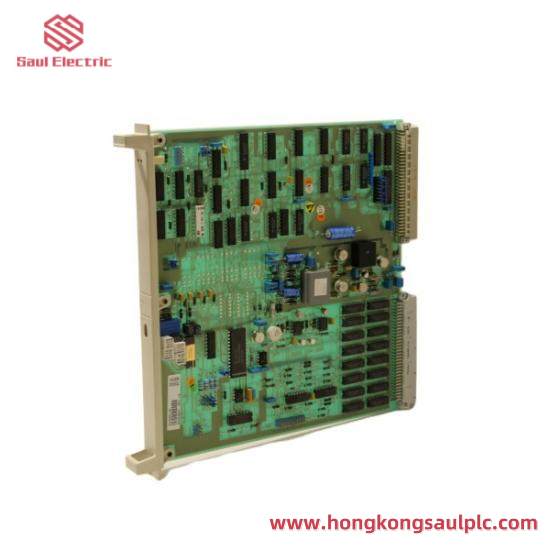

ABB DSAI145 5712001-HA RTD Input Module

Model:DSAI145 5712001-HA

Manufacturer:ABB

Sensor Type:RTD

Operating Temperature Range:-40°C to +85°C

Signal Output:4-20mA

Input Resistance:100 Ohms

Accuracy:±0.1% of reading + ±0.2°C

Power Supply:24V DC

Connection Type:Terminal Block

Dimensions (LxWxH):105 x 64 x 33 mm

Weight:0.04 kg

    The ABB DSAI145 5712001-HA RTD Input Module is engineered to provide unparalleled precision in industrial temperature monitoring. This module utilizes Resistance Temperature Detectors (RTDs) to convert physical temperature changes into electrical resistance variations, which are then accurately translated into digital signals for real-time data acquisition.

    Equipped with a wide temperature range from -200°C to +850°C, it caters to diverse industrial applications, ensuring reliable performance across extreme conditions. Its high accuracy of +/- 0.05% of full scale ensures minimal error margins, making it ideal for critical processes requiring stringent control.

    Featuring an operating voltage of DC 24V and a current consumption of up to 20mA, this module is compatible with a variety of industrial power sources, enhancing its versatility. With a response time of less than one second, it provides instantaneous feedback, crucial for dynamic process control systems.

    The IP67 environmental rating guarantees robust protection against dust and water ingress, enabling its use in harsh environments without compromising performance. Designed for panel mounting, it facilitates easy integration into existing industrial setups, streamlining installation and maintenance procedures.

    Offering a temperature measurement range that spans from -40°C to +85°C for storage and operation respectively, the ABB DSAI145 5712001-HA RTD Input Module ensures compatibility and reliability across different operational scenarios. This makes it a versatile choice for manufacturers looking to enhance their monitoring capabilities and improve overall efficiency.
