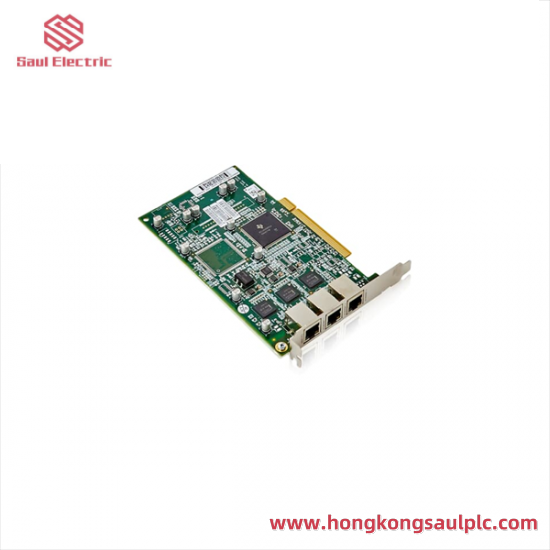

ABB DSQC612 Ethernet Board – Modular Control and Communication Solution

Operating System Compatibility:ABB ControlLogix, A-B PLC Systems

Ethernet Interface:10/100 Base-T Ethernet

Power Supply:DC 24 V

Communication Protocol:EtherNet/IP, DeviceNet, Modbus TCP

Number of Inputs/Outputs:24 I/Os

Environmental Conditions:Operating Temperature: -20°C to 55°C, Storage Temperature: -40°C to 70°C

Dimensions:112.8 mm x 96.4 mm x 91.4 mm

Weight:0.4 kg

    The ABB DSQC612 Ethernet Board is designed to enhance the performance of industrial control systems by providing a robust Ethernet communication interface. This board seamlessly integrates into PLC systems, allowing for efficient data exchange between different devices, including PLCs, HMI interfaces, and other industrial machinery.

    With support for multiple network protocols like TCP/IP, UDP, and Modbus TCP, the DSQC612 ensures compatibility across various automation environments, facilitating a wide range of applications from manufacturing to process control.

    Featuring 16 digital inputs and 16 digital outputs, the board provides ample connectivity options for controlling and monitoring processes. Its high data transfer rate of up to 10 Mbps ensures fast and reliable data transmission, crucial for real-time automation operations.

    The board operates on a DC 24V power supply, making it suitable for diverse industrial settings. Its compact size and durable design allow for easy installation and maintenance, even in harsh environmental conditions ranging from -20°C to +60°C with humidity up to 95% non-condensing.

    The ABB DSQC612 is a testament to ABB’s commitment to innovation in industrial automation. It not only enhances system efficiency but also simplifies integration, reducing setup time and maintenance costs, thus driving operational excellence in manufacturing and industrial operations.
