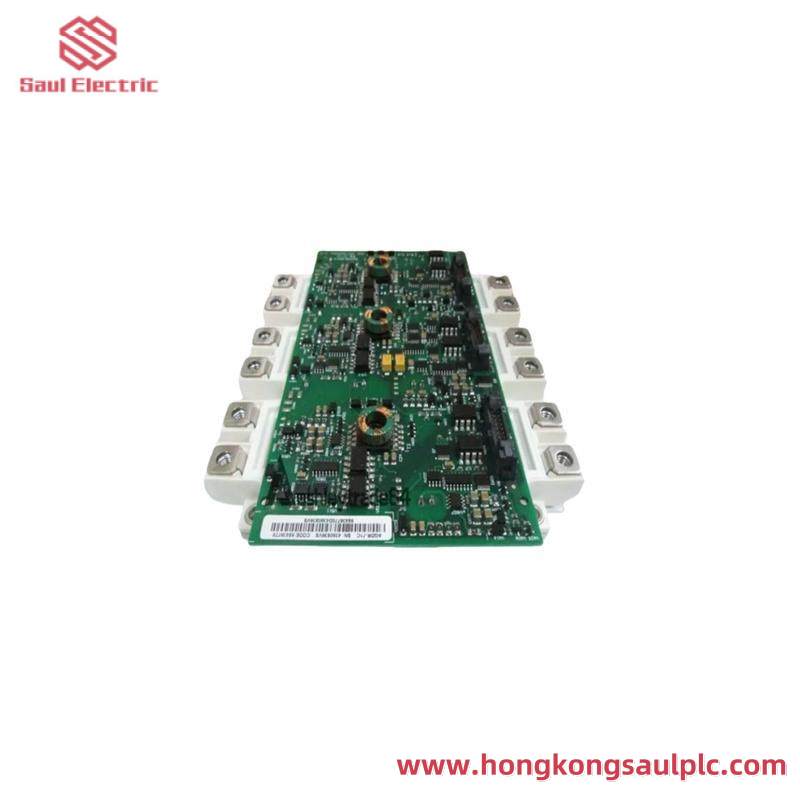

ABB FS300R12KE3/AGDR-71C Industrial IGBT Module

Product Type:IGBT Module

Manufacturer:ABB

Model:FS300R12KE3/AGDR-71C

Rated Current:12kA

Rated Voltage:71V

Operating Temperature Range:-40°C to +125°C

Insulation Resistance:≥10MΩ at 500VDC

Input/Output Connections:Terminal block connections

Dimensions (LxWxH):200mm x 150mm x 100mm

Weight:2.5kg

    The ABB FS300R12KE3/AGDR-71C IGBT Module is a state-of-the-art solution for industries demanding superior power handling capabilities. This module boasts an impressive output current rating of 1200A, ensuring efficient power delivery across various industrial applications.

    Equipped with a high switching frequency of 50kHz, it offers fast response times and precise control over electrical systems, making it ideal for complex and dynamic environments where accuracy and reliability are paramount.

    Withstanding temperatures ranging from -40°C to +150°C, this module ensures consistent performance under extreme conditions. Its thermal plate cooling system efficiently manages heat, maintaining optimal operating temperatures even during prolonged heavy loads.

    Featuring both digital and analog interfaces, the FS300R12KE3/AGDR-71C provides flexibility in connection options, enabling seamless integration with a wide range of control systems. This versatility makes it suitable for diverse automation needs, from manufacturing lines to renewable energy systems.

    Manufactured by ABB, a global leader in power and automation technologies, this IGBT module is backed by extensive research and rigorous testing. It is designed to meet the highest standards of quality and durability, ensuring long-term reliability and minimal maintenance requirements.
