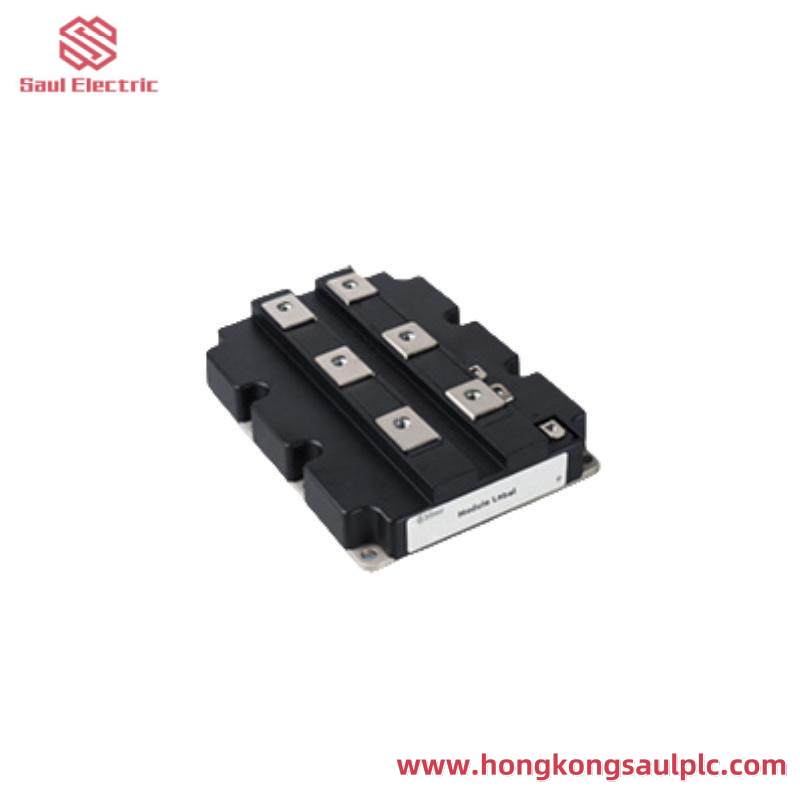

ABB FZ1200R17HE4 – Single Switch IGBT Module

Operating Voltage:1200V

Continuous Current:1700A

Switching Frequency:Up to 20kHz

Insulation Resistance:≥10^10Ω

Cooling System:Active Air Cooling

Package Type:Through-hole Mounting

Environmental Temperature Range:-40°C to +150°C

Weight:≤10kg (depending on configuration)

    The ABB FZ1200R17HE4 Single Switch IGBT Module boasts a cutting-edge design that optimizes thermal management and reduces switching losses, making it an ideal choice for demanding industrial and renewable energy applications.

    Engineered with advanced semiconductor technology, this module ensures high reliability and robustness, even under extreme operating conditions. Its efficient power handling capability allows for optimal performance in high-power applications.

    Featuring a compact size and lightweight construction, the module facilitates easy integration into existing systems without compromising on performance or space constraints. It supports flexible mounting options, ensuring compatibility with various system architectures.

    The ABB FZ1200R17HE4 is designed with safety in mind, incorporating features such as overtemperature protection and short-circuit resilience to safeguard against potential hazards. This ensures prolonged operational life and minimizes downtime.

    Backed by ABB’s commitment to quality and customer support, the module comes with comprehensive documentation and technical assistance, enabling users to leverage its full potential in their projects. It’s a testament to ABB’s leadership in power electronics innovation, offering a balance between performance, efficiency, and reliability.
