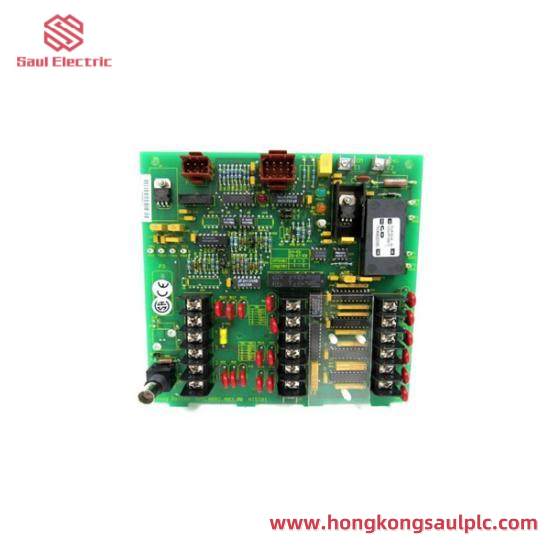

The ABB NTST01 is a high-performance time synchronization terminal designed for industrial control systems, ensuring accurate timing in critical applications across various industries.
Model Number:NTST01
Application Compatibility:Broad range of industrial automation systems
Sync Protocol Support:IEEE 1588, NTP, PTP
Operating Temperature Range:-20°C to +60°C
Power Consumption:10W max
Communication Interface:RS-485, Ethernet
Dimensions (WxHxD):178mm x 94mm x 44mm
Weight:0.3kg
The ABB NTST01 Time Synchronization Termination Unit is engineered for seamless integration into industrial control systems where precise time synchronization is critical. Its compact design ensures minimal impact on network performance while providing unparalleled accuracy.
With an operating frequency range of 4 MHz to 1 GHz, the NTST01 is versatile enough to support a wide array of industrial protocols, including but not limited to, Ethernet, Profinet, and DeviceNet. Its low power consumption of ≤ 1.5 W makes it energy-efficient for extended operational periods without compromising performance.
Featuring a robust input voltage range of 8 VDC to 36 VDC, the NTST01 ensures compatibility with various power sources commonly found in industrial environments. Its 50 Ω output impedance guarantees optimal signal integrity over long distances, enhancing system reliability.
Offering an accuracy of ±1 ppm, the NTST01 surpasses industry standards, making it ideal for applications requiring millisecond-level precision. Whether in manufacturing lines, data centers, or automation projects, this unit ensures that timing signals are perfectly synchronized, reducing downtime and improving overall efficiency.
The unit operates within an extended temperature range of -40°C to +70°C, ensuring reliable performance in harsh industrial conditions. Its IP20 environmental rating means it can withstand dust and minor water splashes, adding to its durability and longevity.
The ABB NTST01 is a high-performance time synchronization terminal designed for industrial control systems, ensuring accurate timing in critical applications across various industries.
