ABB SDCS-PIN-51 – A Modular Measurement Card for Advanced Automation Solutions

Product Type:Compact Measurement Unit

Weight:0.164 kg

Dimensions (WxHxD):1.8 x 2.1 x 26.2 cm

Operating Temperature Range:-20°C to +60°C

Input Voltage:12V DC

Output Resolution:4 kHz

Communication Interface:Profibus DPV1

Environmental Protection:IP20 Enclosure

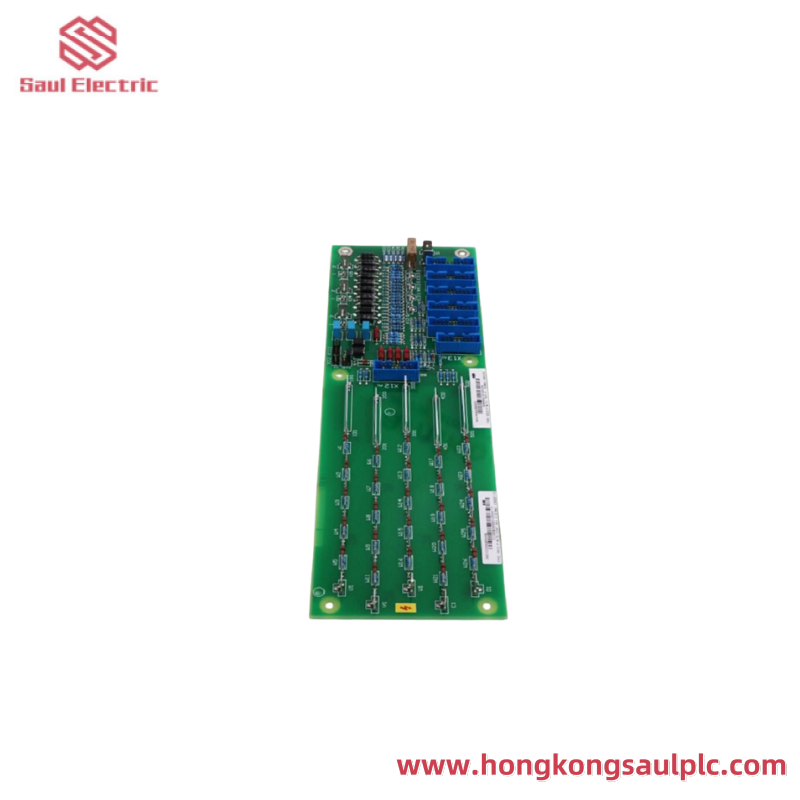

    Introducing the ABB SDCS-PIN-51-COAT 3ADT220090R0006 Measurement Card, designed for industries demanding precision and reliability in their measurement processes. This cutting-edge card is a testament to ABB’s commitment to excellence, combining state-of-the-art technology with robust engineering to deliver exceptional performance.

    Featuring four dedicated input channels, each capable of measuring within a wide range of signals from -10V to +10V, ensuring accurate readings across diverse applications. The card’s high-resolution input signal processing allows for precise data capture, making it ideal for complex industrial environments.

    Equipped with a communication protocol compatible with Profibus DPV1, the card seamlessly integrates with existing automation systems, enhancing efficiency and reducing integration time. Its compact size and lightweight design make it easily adaptable to various installation scenarios, whether on the factory floor or in remote locations.

    Engineered to withstand harsh conditions, the ABB SDCS-PIN-51 is built to operate within a temperature range of -20°C to +70°C, ensuring reliable performance in extreme environments. With its efficient power consumption of just 1.5W, the card is energy-conscious, contributing to sustainable operational practices without compromising on performance.

    Incorporating ABB’s advanced quality control measures, the Measurement Card undergoes rigorous testing to ensure it meets the highest standards of durability and accuracy. This commitment to quality is reflected in its long service life and minimal maintenance requirements, offering a cost-effective solution for continuous operation.
