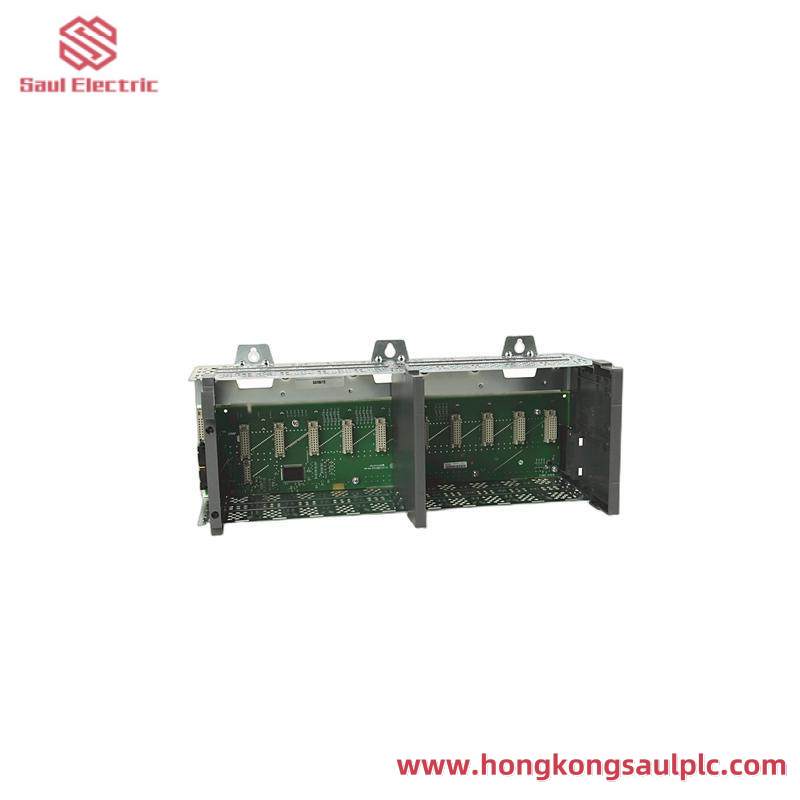

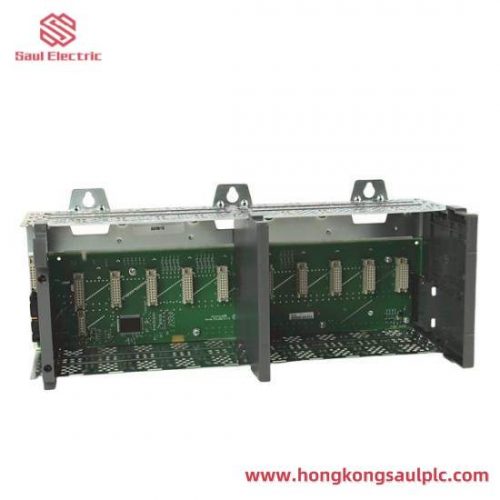

Allen-Bradley 1746-A10 SLC500 I/O Chassis

Model Type:SLC500

Model Number:1746-A10

Manufacturer:Allen Bradley

I/O Chassis:SLC Series

Capacity:10 Slot

Mounting:Panel

Temperature Rating:0 – 60 DEG C

Enclosure:Open Type

Form Factor:Slot Type Chassis

Cooling:Convection

Dimensions:Length: 5.8 IN, Width: 15.9 IN, Height: 6.8 IN

Maximum Backplane Current:5.1 VDC At 10 A, 24 VDC A 2.88 A

Weight:3.2 LB Without Modules

Power Consumption:1.8 W

Power Dissipation:6.1 BTU/HR

Standards:GOST_R, KCC, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR

    The Allen-Bradley 1746-A10 SLC500 I/O Chassis is a high-performance I/O chassis designed specifically for industrial automation environments. This robust chassis supports up to 10 slots for various input/output modules, making it highly versatile for different applications. The open-type enclosure ensures easy access and maintenance, while its panel-mount design makes installation straightforward and secure. With a temperature rating of 0 – 60 DEG C, this chassis can operate reliably in a wide range of environmental conditions. Additionally, the convection cooling method ensures efficient heat dissipation, prolonging the lifespan of the modules. The chassis has a compact size of 5.8 IN x 15.9 IN x 6.8 IN, fitting well in space-constrained areas. Its power consumption of 1.8 W and power dissipation of 6.1 BTU/HR make it energy-efficient, contributing to lower operational costs. This chassis complies with numerous international standards and approvals, including GOST_R, KCC, and multiple marine certifications, ensuring global compatibility and safety.
