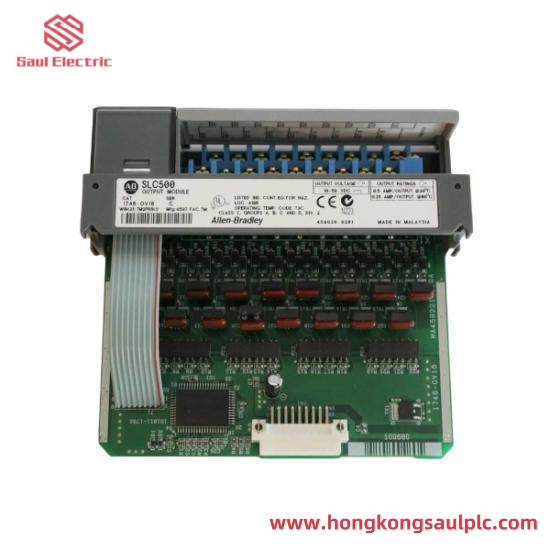

The AB 1746-OV16 is a high-performance digital discrete output module designed for use in industrial control systems. It provides reliable and efficient performance for applications requiring precise control signals.
Product Model:1746-OV16
Type:Discrete Output Module
Series:SLC 500
Nominal Input Voltage:24 VDC
Input Voltage Range:10-50 VDC
Backplane Current Consumption:0.270 A
Voltage Range:10-50 VDC
Number of Outputs:16
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Temperature Rating:0-60°C
Environmental Conditions:5-95%
The Allen-Bradley 1746-OV16 Discrete Output Module is an essential component for any industrial automation setup. With its robust design and reliable performance, this module ensures seamless integration with Allen-Bradley SLC 500 controllers. The module features 16 sink outputs, allowing for versatile connectivity and control. Designed to operate within a wide input voltage range of 10-50 VDC, it maintains consistent performance even under varying conditions. Its compact form factor and easy installation make it an ideal choice for a variety of applications, from factory automation to process control systems. The module’s high reliability and durability ensure long-term performance, reducing downtime and maintenance costs. Whether you are upgrading existing systems or building new ones, the Allen-Bradley 1746-OV16 is a trusted solution that delivers outstanding results.
The AB 1746-OV16 is a high-performance digital discrete output module designed for use in industrial control systems. It provides reliable and efficient performance for applications requiring precise control signals.
