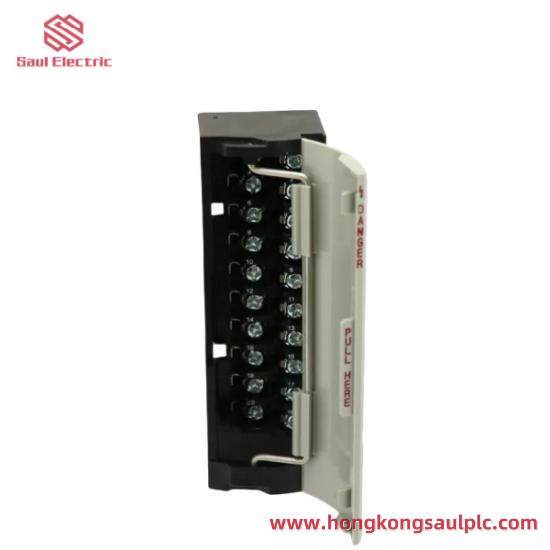

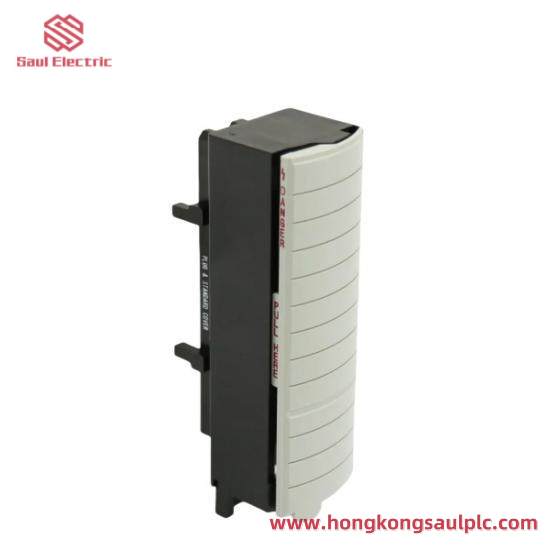

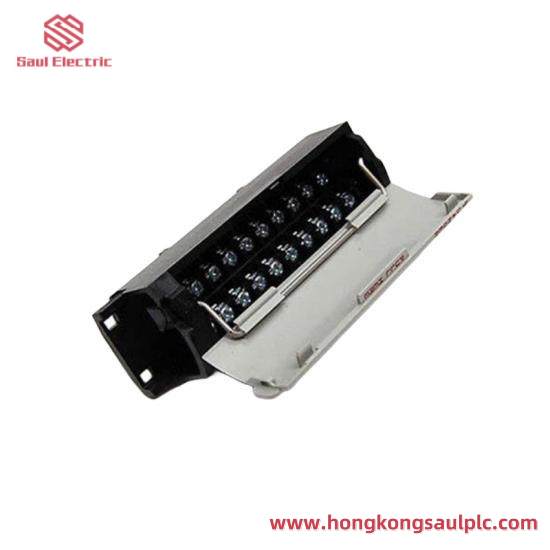

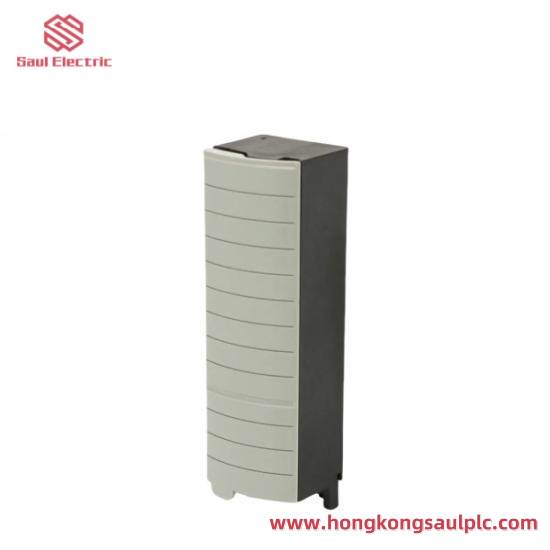

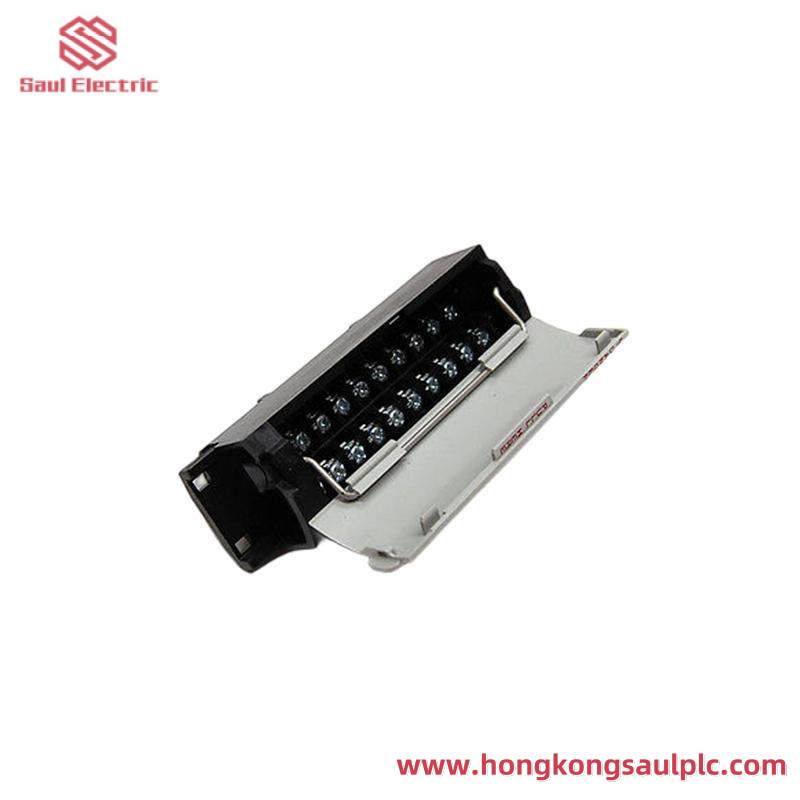

Allen-Bradley 1756-TBNH ControlLogix Terminal Block

Series:ControlLogix

Model:1756-TBNH

Brand:AB

Item No.:1756-TBNH

Operating Voltage:220 V

Output Frequency:30 kHz

Power Dissipation (Max):6.19 W

Wire Size:20 AWG

Dimensions:5.51 x 4.41 x 5.71 inches

Weight:0.3 pounds (0.1 kilograms)

    The Allen-Bradley 1756-TBNH terminal block module is an essential component for integrating various field devices with ControlLogix PLC systems. Its robust design ensures reliable connections and minimal signal loss, making it ideal for demanding industrial environments.

    With a maximum power dissipation of 6.19 Watts, this module efficiently handles the power requirements of connected devices without compromising performance. The 20-pin terminal block configuration provides ample space for wiring and connections, simplifying installation and maintenance.

    The module supports an operating voltage range of 220 V and operates at an output frequency of up to 30 kHz, making it suitable for a wide range of industrial applications. The use of 20 AWG wire size ensures secure and stable connections under various conditions.

    The compact dimensions of 5.51 x 4.41 x 5.71 inches make the 1756-TBNH module easy to install in tight spaces, while its lightweight design (0.3 pounds) ensures ease of handling during installation and maintenance processes.

    Certified by AB, the 1756-TBNH module meets stringent industry standards for reliability and performance. Its modular design allows for seamless integration with other ControlLogix components, streamlining the setup and operation of complex industrial systems.
