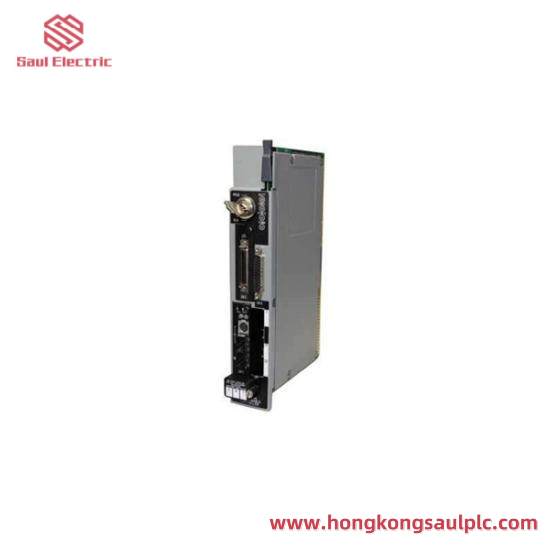

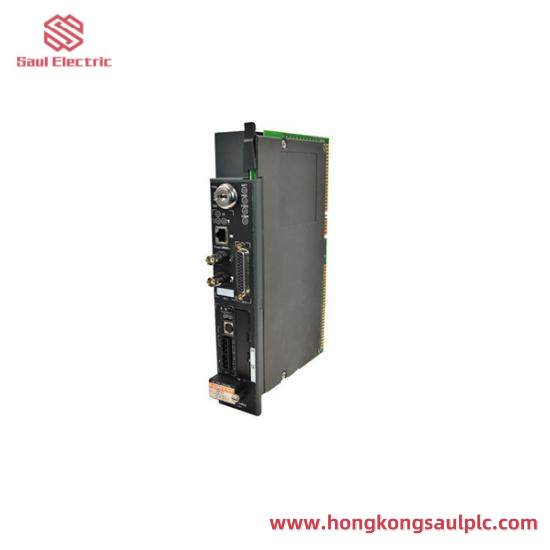

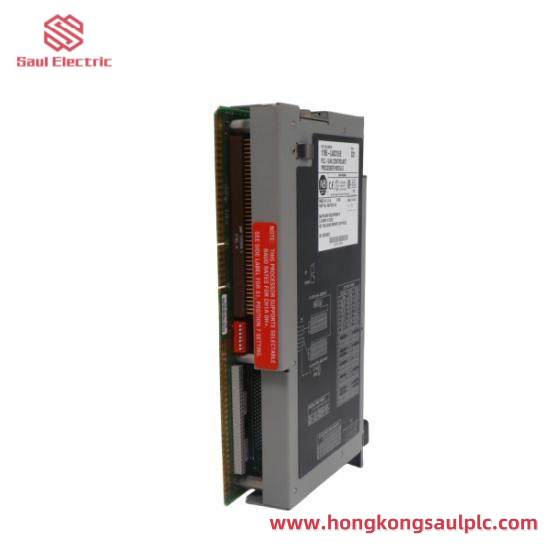

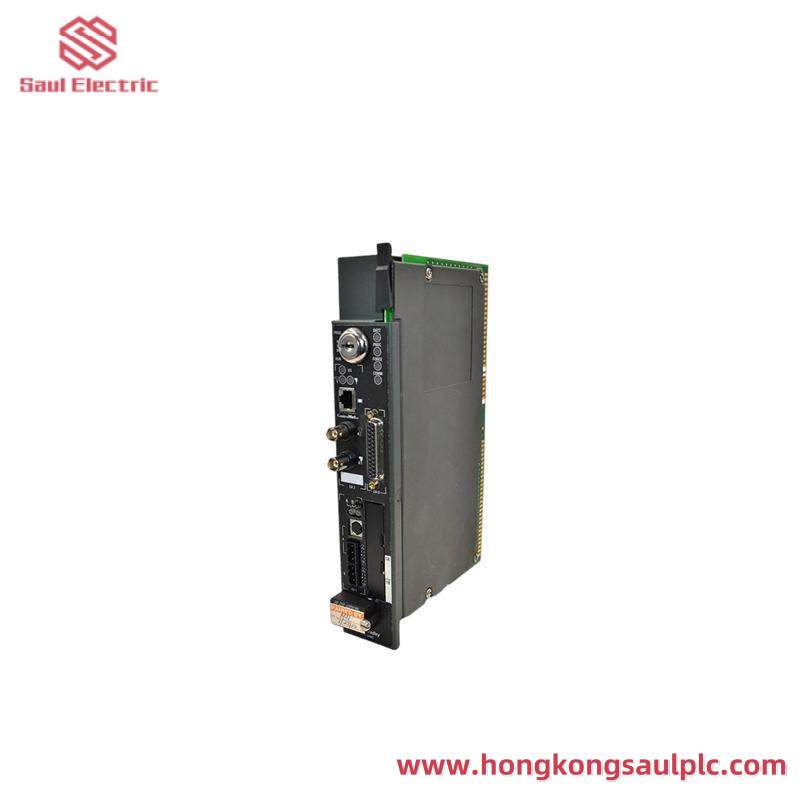

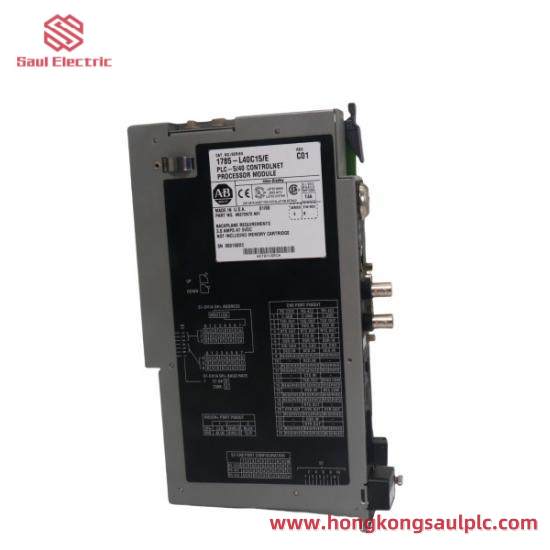

Allen-Bradley 1785-L40C15 CompactLogix Controller

Manufacturer:Allen-Bradley

Model:1785-L40C15

Module Type:ControlLogix I/O Module

Form Factor:L40

Channel Count:32 Digital Inputs

Voltage Range:10-30 V DC

Input Current:5 mA per channel

Response Time:< 1 ms

Communication Protocol:EtherNet/IP, ControlNet, DeviceNet

Environmental Rating:IP20, NEMA 1

Power Consumption:5 W

Weight:0.5 kg

Dimensions:170 mm x 100 mm x 50 mm

    The Allen-Bradley 1785-L40C15 ControlLogix I/O Module is designed for industrial automation systems requiring high-speed digital input processing. Its compact form factor allows for efficient space utilization in control cabinets, making it ideal for a wide range of applications from manufacturing lines to process control systems.

    This module supports multiple communication protocols including EtherNet/IP, ControlNet, and DeviceNet, ensuring seamless integration with existing and future systems. The advanced input circuitry provides reliable and consistent performance, reducing downtime and maintenance costs.

    The 1785-L40C15 features a robust design certified to IP20 and NEMA 1 standards, making it suitable for harsh industrial environments. Its low power consumption ensures energy efficiency without compromising on performance.

    Installation is straightforward with clear labeling and easy-to-access terminals. The module’s quick response time of less than 1 ms ensures real-time data acquisition and control, optimizing overall system performance.

    For users seeking to maximize their investment, the Allen-Bradley ControlLogix platform provides extensive scalability and flexibility. With its modular architecture, this I/O module can be easily expanded or integrated into larger systems as needed.
