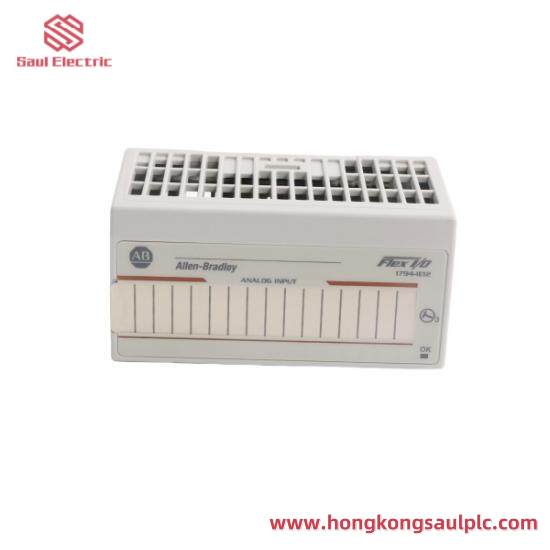

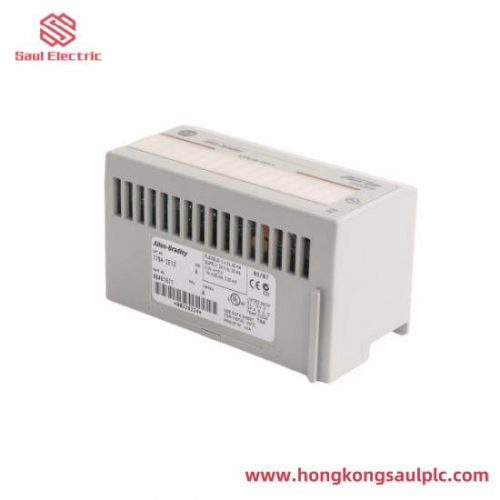

Allen-Bradley 1794-IE12 56073342.56073328 – 12 Point Analog Input Module

Model Type:FLEX™ I/O

Model Number:1797

Channels:8

Input Voltage (Uo):<23.7 V

Input Current (Io):<93.5 mA

Output Power (Po):<555 mW

Voltage Rating:Functional Data Range >15 V at 22 mA, >21.5 V at 0 mA

Power Consumption:7.5 W (Module field-side)

Power Supply:Ui <9.5 VDC, Ii <1 A

Enclosure:IP20

Connection Cable:12 AWG Stranded Copper Wire

Mounting:DIN Rail, Panel

Length:3.7 IN

Width:1.5 IN

    The Allen-Bradley 1794-IE12 Analog Input Module is designed for seamless integration into advanced industrial automation systems, providing accurate and reliable data acquisition for a wide range of applications. With its 12-point Flex technology, this module ensures efficient signal processing and transmission.

    Featuring an extensive voltage input range from 20 to 60V DC and a maximum current capability of 20mA per channel, it supports diverse industrial signals, making it suitable for various control and monitoring scenarios.

    Built to withstand harsh industrial environments, this module operates within a temperature range of -40°C to +70°C, ensuring stable performance in extreme conditions. Its IP20 enclosure protects against dust and minor water splashes, enhancing durability and reliability.

    Equipped with an integrated EtherNet/IP communication interface, the Allen-Bradley 1794-IE12 facilitates seamless connectivity with other devices on the network, streamlining data exchange and process control.

    With its low power consumption of 7.5W, this module is energy-efficient, reducing operational costs and environmental impact. Its DIN rail mounting option allows for easy installation and integration into existing systems, saving space and simplifying maintenance.
