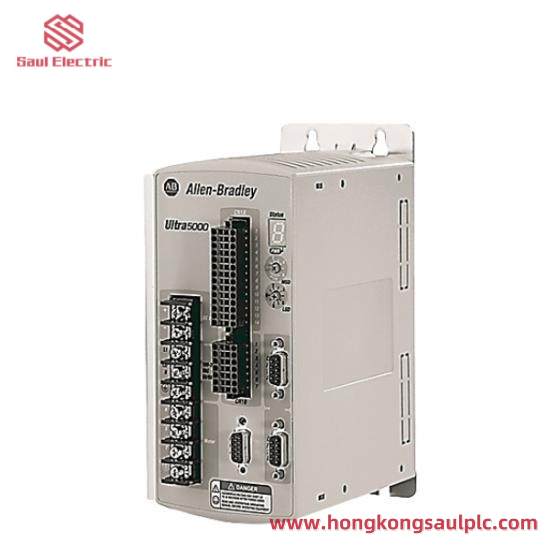

The Allen-Bradley 2098-DSD-HV220-SE is a high-performance AC drive designed for efficient operation in industrial automation systems, offering precise control and energy savings.
Operating Voltage Range:230Vac – 480 Vac, 3-phase
Nominal Input Current (AC):14 Amps
Root Mean Square Input Frequency (AC):47-63 Hz
Input Voltage (AC):120 – 240 Vrms, 1-Phase
Bus Overvoltage Protection:810V dc
Continuous Output Power @ 480 VAC:10.0 kW
Continuous Output Power @ 230 VAC:5.0 kW
Peak Output Current:94A
Shunt Voltage:800V dc
Indexing Feature:Advanced for superior machine control
PWM Frequency Input:Variable for precise speed control
EMC Compliance:Certified to meet various standards
Relative Humidity Range:0-95% non-condensing
Temperature Range:0°C to 55°C
Engineered with state-of-the-art technology, the Allen-Bradley 2098-DSD-HV220-SE AC drive offers unparalleled precision and reliability for your industrial operations. Its robust design withstands harsh environmental conditions, ensuring consistent performance even under extreme temperatures and humidity.
With a wide input voltage range of 230-480 VAC and frequency support up to 63 Hz, this drive is versatile enough to meet the needs of diverse industries. Its 14 A nominal input current and peak capabilities make it suitable for high-power applications, delivering up to 10.0 kW at 480 VAC and 5.0 kW at 230 VAC.
The inclusion of an advanced indexing feature enhances machine control and performance, optimizing production processes and reducing downtime. The variable PID control system ensures smooth velocity adjustment and precise positioning, critical for achieving high-quality outputs.
Compliance with EMC directives ensures minimal interference with other equipment, maintaining a clean electrical environment. The 2098-DSD-HV220-SE is also equipped with a DC shunt resistance, providing stable operation during peak loads.
Ideal for installation in areas with moderate relative humidity (up to 95% non-condensing), this drive is designed to operate efficiently without the need for extensive maintenance. It features an auxiliary power supply option, ensuring operational flexibility and reliability in complex systems.
