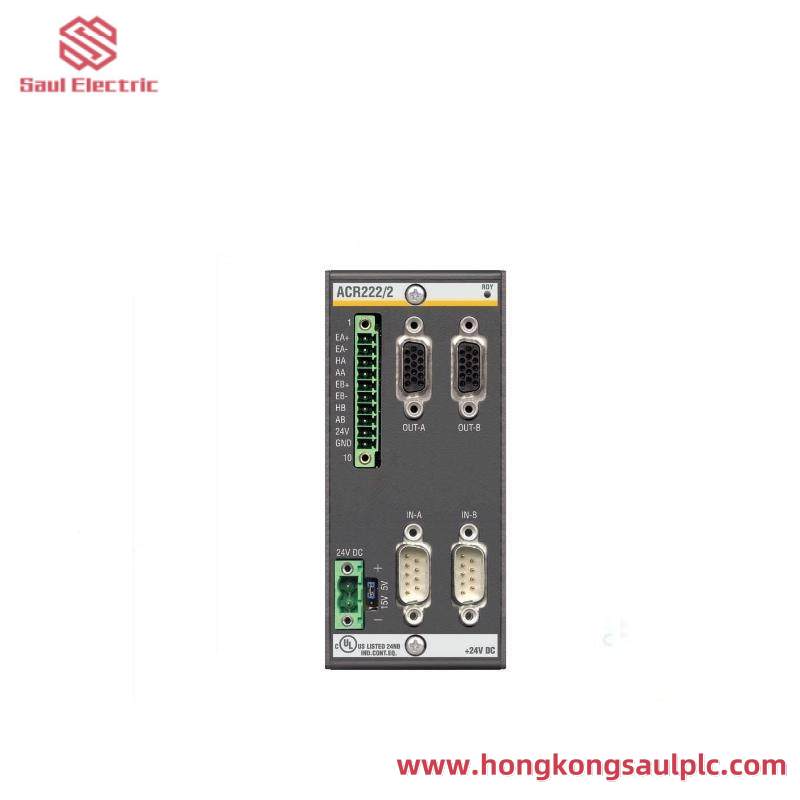

The BACHMANN ACR222/2 Axis Controller Module is a high-performance solution designed for precise motor control in industrial automation applications. It offers advanced features for efficient operation, including dual outputs, incremental encoder inputs, and versatile input/output configurations.
Product Type:Axis Controller Module
Counter Resolution:24 bit
Inputs:HEDL (HP/AVAGO interface) / RS422
Encoder Power Supply:+5 V or +15 V selectable with jumper
Output Voltage:Low: 0 to 2 V, high: 3 to 34 V, Imax = 10 mA
Voltage Range:18 to 34 VDC
Stepper Motor Compatibility:2x Out 150kHz, 2x In INC
Acceleration Modes:Linear, sine², parabolic
Encoder Supply Voltage:5/15V
Integrating cutting-edge technology, the BACHMANN ACR222/2 Axis Controller Module is engineered to meet the demands of modern industrial automation. This module provides exceptional control accuracy, ensuring optimal performance across a wide range of applications.
Featuring a 24-bit counter resolution, it delivers precise measurement and control capabilities. The dual outputs operate at 150kHz, allowing for rapid response times and smooth motor control.
Equipped with RS422 and HEDL (HP / AVAGO interface) encoder inputs, the module supports seamless integration with various encoder systems, enhancing its versatility in different automation scenarios.
With the ability to select between +5 V or +15 V encoder power supply through a jumper, users can customize their setup according to specific requirements, ensuring compatibility and efficiency.
The output voltage range from low to high (0 to 34 VDC) and the maximum current draw of 10 mA offer flexibility in driving motors of varying specifications. This ensures that the module can handle a broad spectrum of motor loads, making it suitable for diverse industrial settings.
The BACHMANN ACR222/2 Axis Controller Module is a high-performance solution designed for precise motor control in industrial automation applications. It offers advanced features for efficient operation, including dual outputs, incremental encoder inputs, and versatile input/output configurations.
