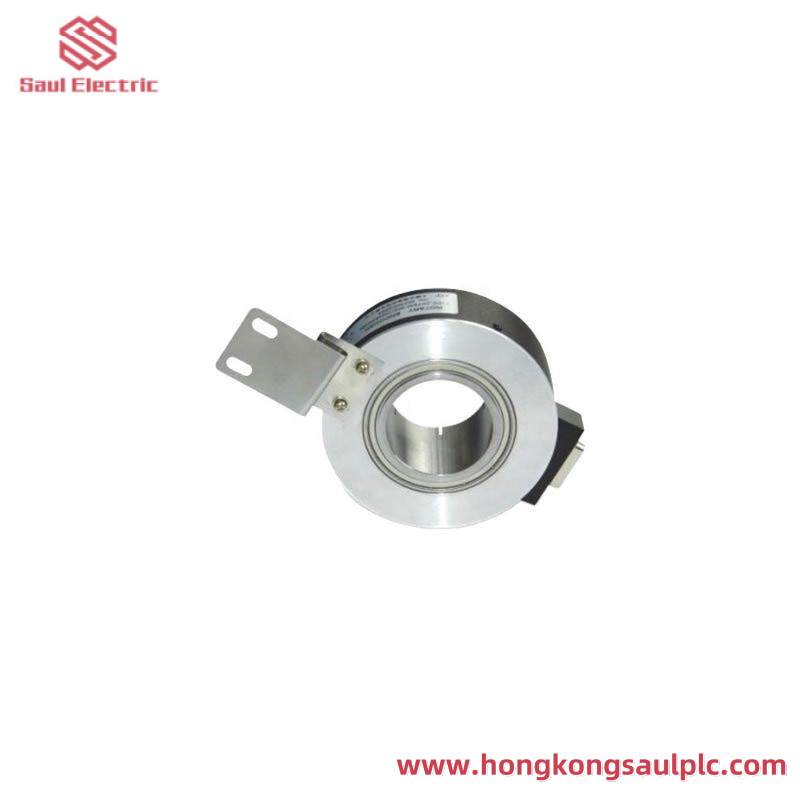

ELCO EB100P38-P6PR-1024: High Precision 1024 Line Hollow Shaft Rotary Encoder

Type:Rotary Encoder

Model:EB100P38-P6PR-1024

Resolution:1024 lines per revolution

Shaft Type:Hollow Shaft

Shaft Diameter:30mm

Operating Voltage:5V DC

Operating Current:Less than 10mA

Operating Temperature Range:-20°C to +85°C

Connectivity:Soldered Leads

Output Type:Unipolar

Accuracy:+/- 0.5% of Full Scale

Rotational Speed:Up to 3000 RPM

    Introducing the ELCO EB100P38-P6PR-1024, a high-performance rotary encoder designed for applications requiring precise measurement and control over rotational movements. This encoder boasts a robust aluminum housing that ensures durability and reliability in harsh industrial environments.

    With a 1024 line resolution, it offers unparalleled accuracy for position feedback, enabling precise control in machinery and automation systems. The hollow shaft design facilitates straightforward installation and integration, minimizing the need for additional adapters.

    Equipped with an IP67 rating, this encoder is fully protected against dust and water ingress, making it suitable for use in dusty and wet environments. It operates within a temperature range of -20°C to +70°C, ensuring stable performance under varying conditions.

    Featuring a push-pull output type, it provides a direct and efficient connection to control systems without the need for additional signal processing. The encoder’s compact size and lightweight construction make it ideal for space-constrained applications without compromising on performance.

    Manufactured with precision in mind, the ELCO EB100P38-P6PR-1024 encoder is built to withstand heavy loads, making it suitable for applications where robustness is crucial. Its accuracy of ±0.5% of full scale ensures reliable and consistent performance over its operational lifetime.
