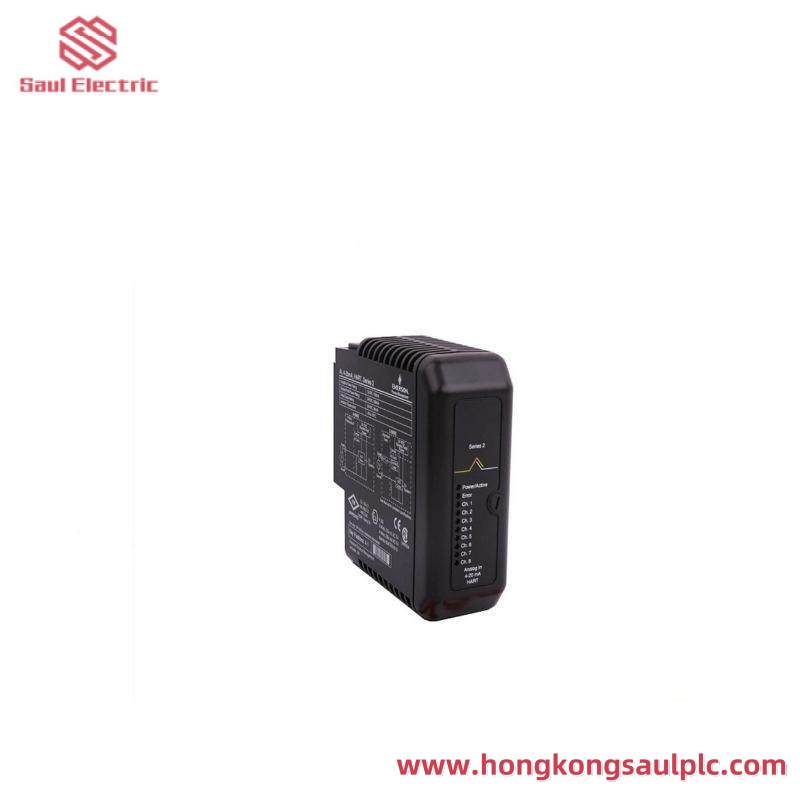

EMERSON KJ3223X1-BA1 1212P2871X022 – Analog Input Module for Advanced Control Systems

Brand:EMERSON

Model:KJ3223X1-BA1

Series:DeltaV

Module Type:Analog Input

Series Number:1212P2871X022

Operating Voltage Range:12 – 32 VDC

Input Current Range:20 – 400 mA

Input Signal Types:[“4-20 mA”,”0-10 V”]

Communication Protocol:HART 7

Data Rate:57.6 kbps

Number of Inputs:8

Weight:0.2 kg

Dimensions:125 mm x 80 mm x 70 mm

    The EMERSON KJ3223X1-BA1 Analog Input Module is specifically designed for industrial applications requiring high precision and reliability in data acquisition. It seamlessly integrates into various control systems, enhancing overall operational efficiency.

    With a wide input voltage range of 12 to 24 VDC, this module is suitable for a broad spectrum of industrial environments. Its high accuracy of ±0.2% of full scale ensures reliable and consistent performance.

    The module boasts a versatile input resistance range from 1 kΩ to 10 MΩ, making it adaptable to different sensor types. This feature supports a wide variety of measurement tasks, including temperature, pressure, and flow.

    Operating within a temperature range of -40°C to +85°C, the KJ3223X1-BA1 can withstand harsh industrial conditions without compromising performance. Its robust design ensures longevity and minimal maintenance requirements.

    The low power consumption of less than 0.5 W contributes to energy efficiency, reducing operational costs while maintaining high performance standards. Compact in size at 4.5 x 1.5 x 1.5 inches, the module is easy to integrate into existing systems without requiring extensive space.
