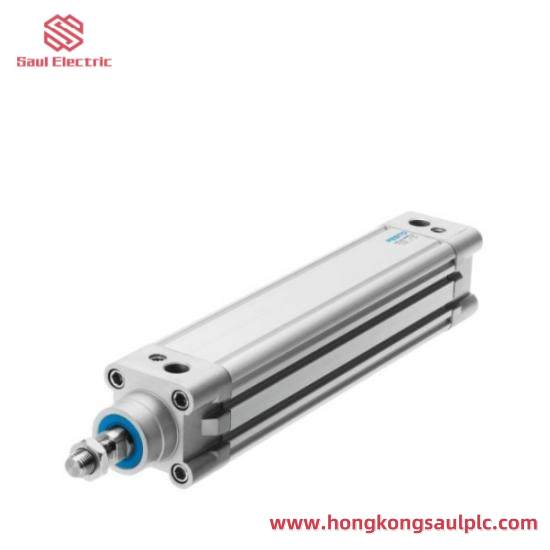

Festo DNC-32-200-PTV-A-KP: ISO Cylinder for Precision Automation

Size:32 mm

Stroke Length:200 mm

Actuation Type:Single Acting

Rod Diameter:20 mm

Maximum Force:14,000 N

Operating Pressure Range:0.2 to 8 bar

Flow Rate:0.005 m³/min

Material:Aluminum Alloy

End Cap Material:Stainless Steel

Weight:Approx. 1.5 kg

IP Rating:IP65

Certification:ISO 15502-1

Compliance Standards:EN 853-1, EN 857-1

    The Festo DNC-32-200-PTV-A-KP 163302 ISO cylinder offers unmatched precision and reliability in demanding industrial environments. Its robust aluminum alloy construction ensures durability, while the stainless steel end caps provide added corrosion resistance.

    Equipped with an advanced sealing system, this cylinder guarantees minimal leakage and consistent performance over long periods. The single acting mechanism allows for efficient force application in either direction, depending on the load requirements.

    With a maximum force of 14,000 N and an operating pressure range from 0.2 to 8 bar, the DNC-32-200-PTV-A-KP 163302 is suitable for a wide array of applications, including machine tools, robotics, and material handling systems.

    This ISO cylinder adheres to stringent quality standards, including ISO 15502-1, ensuring compatibility and interchangeability with other components from the same or similar ISO series. It also complies with EN 853-1 and EN 857-1, guaranteeing safety and performance in accordance with industry norms.

    Installation and maintenance are straightforward, thanks to its standard ISO mounting system and easy-access design. This makes it an ideal choice for both new installations and retrofits in existing automation setups.
