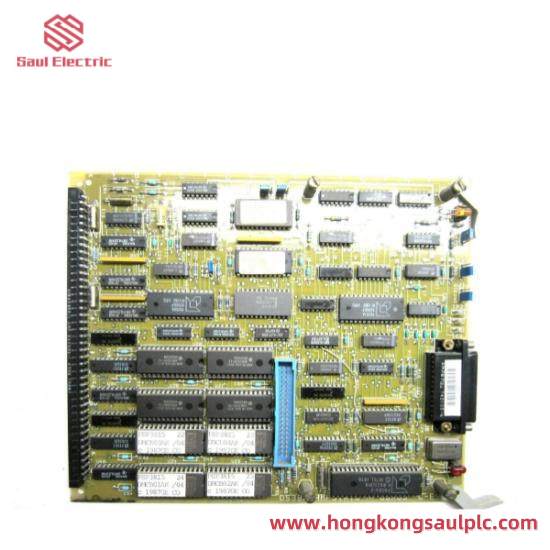

The DS3800HMPJ1A1D GE General Electric Mark VI circuit board is a critical component in industrial control systems, providing advanced processing capabilities and reliable operation in harsh environments.
Manufacturer:General Electric
Model Number:DS3800HMPJ1A1D
Module Category:Mark VI System
Operating Frequency:Up to 20 MHz
Memory Size:1 MB
Processor Type:Microprocessor
Interface Standards:IEEE 802.3
Operating Temperature Range:-40°C to +70°C
Power Consumption:15W
Board Dimensions:12.5in x 9.5in
Connectivity:RS-232, USB
Safety Certification:CE, UL
The DS3800HMPJ1A1D circuit board is engineered with precision and robustness, making it an indispensable part of GE’s advanced Mark VI control systems. Its microprocessor design ensures seamless integration with complex industrial automation processes, providing unparalleled reliability and efficiency.
Engineered for operation in extreme temperatures ranging from -40°C to +70°C, this board is built to withstand harsh industrial conditions, ensuring continuous performance without compromise. The high-voltage power supply (12VDC) guarantees stable operation under varying environmental conditions.
Equipped with 32 I/O channels, the DS3800HMPJ1A1D offers extensive connectivity options, supporting a wide array of input and output devices necessary for industrial control applications. Its RS-485 interface facilitates reliable data transmission over long distances, enhancing system scalability and efficiency.
The compact dimensions of 178 x 178 x 38 mm make this board space-efficient, ideal for installations where footprint is a concern. Its rigid FR-4 material ensures durability and heat dissipation, contributing to its overall reliability and longevity.
For optimal performance and ease of maintenance, the DS3800HMPJ1A1D comes with detailed technical documentation, including data sheets and manuals, providing users with comprehensive guidance on installation, configuration, and troubleshooting.
The DS3800HMPJ1A1D GE General Electric Mark VI circuit board is a critical component in industrial control systems, providing advanced processing capabilities and reliable operation in harsh environments.
