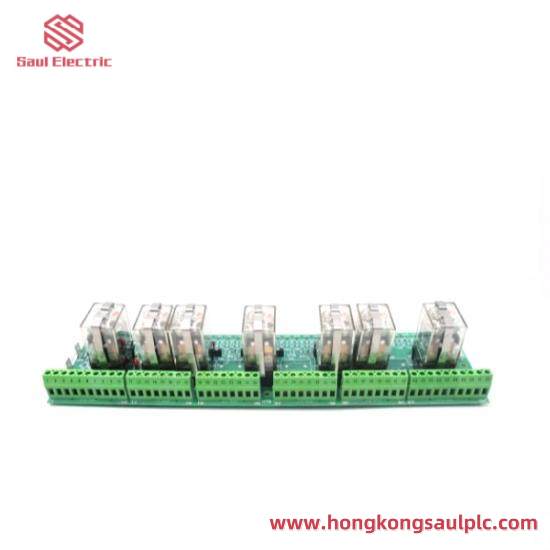

The DS200RTBAG4AHC is a Relay Terminal Board designed for General Electric’s Mark V Turbine Control System Series. It integrates seven Form C DPDT relays driven by software, equipped with diagnostic LEDs for status monitoring.
Manufactured By:General Electric
Model:DS200RTBAG4AHC
Category:Boards & Turbine Control
Type:Mark V DS200
Function:Relay Terminal Board
Power Capacity:Up to 1000 kW
Operating Temperature Range:-40°C to +70°C
Communication Protocol:Ethernet/IP
Material:Aluminum and Copper
Dimensions:W150mm x D100mm x H50mm
Weight:0.36kg
Designed specifically for the Mark V Turbine Control System Series, this DS200RTBAG4AHC Relay Terminal Board offers unparalleled reliability and performance.
With seven Form C DPDT relays integrated into its assembly, this board ensures robust and dependable control within industrial environments.
Each relay is software-driven through the Mark V system’s LTB pilot relays, providing precise control and operation.
Diagnostic LED indicators accompany each relay, offering real-time status updates and enhancing maintenance efficiency.
Constructed with high-quality materials, this board is built to withstand harsh industrial conditions, ensuring long-term durability and performance.
Whether for new installations or replacements, the DS200RTBAG4AHC stands out as an essential component for any turbine control system.
The DS200RTBAG4AHC is a Relay Terminal Board designed for General Electric's Mark V Turbine Control System Series. It integrates seven Form C DPDT relays driven by software, equipped with diagnostic LEDs for status monitoring.
