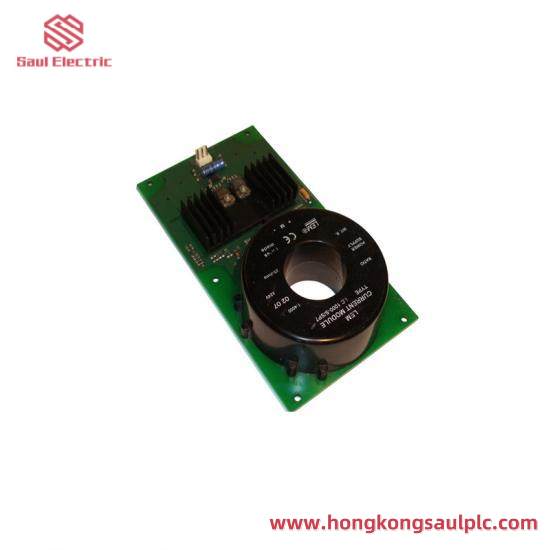

LEM LC100S/SP7 Current Sensor Module

Sensor Type:Current Sensor

Measurement Range:±100 A

Accuracy:±0.5% of reading ±5 μA

Frequency Range:DC to 1 MHz

Output Signal:Analog Voltage Output (0-5V)

Response Time:Less than 1 ms

Operating Temperature Range:-40°C to +85°C

Supply Voltage:5 V ±5%

Insulation Voltage:4 kV

Mechanical Dimensions:Length: 85 mm, Width: 30 mm, Height: 15 mm

Weight:Approximately 50 g

    The LEM LC100S/SP7 Current Sensor Module is a highly accurate and reliable device, specifically designed for industrial applications. This module offers precise measurement capabilities with an accuracy of 0.3% of reading plus 0.1% of full scale. It features a rated measurement range of ±100 A, making it suitable for a wide range of electrical systems where current monitoring is critical. The module provides an analog output signal of ±5V, ensuring seamless integration with control systems and data acquisition devices. With a rapid response time of less than 1 ms, the LEM LC100S/SP7 ensures real-time monitoring of current levels. Built to withstand harsh industrial environments, this sensor operates within a temperature range of -25°C to +85°C, making it ideal for both indoor and outdoor use. Additionally, it consumes a maximum power of 50 mA, providing efficient energy usage. This module is certified to meet CE and RoHS standards, ensuring compliance with international safety and environmental regulations.
