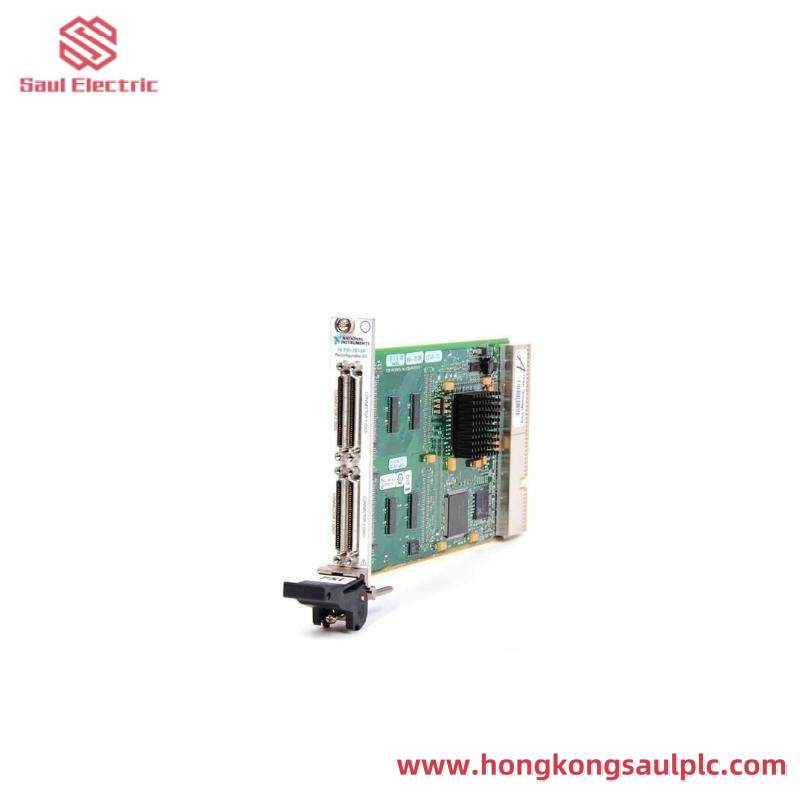

The National Instruments PXI-7813R is a high-performance digital I/O module designed for PXI systems, offering exceptional speed, precision, and reliability in industrial control applications.
Operating Voltage:3.3V
Number of Channels:16
Channel Configuration:8 differential, 8 non-differential
Data Rate (Max):100 MHz
Power Consumption (Typical):2W
Dimensions (LxWxH):96.5mm x 90.5mm x 44.5mm
Weight:0.3 kg
The PXI-7813R module leverages National Instruments’ robust and flexible PXI architecture, enabling seamless integration into existing test systems. Its compact design ensures efficient use of bench space, making it ideal for both laboratory environments and on-the-go field testing.
With its high-speed digital I/O capabilities, this module is particularly suited for applications requiring fast sampling and signal processing. It supports a wide range of data rates for inputs and outputs, allowing users to adapt the performance to their specific needs.
Featuring a rugged construction, the PXI-7813R can withstand harsh environmental conditions without compromising reliability or performance. This makes it an excellent choice for industrial automation where reliability is paramount.
The module includes advanced features such as on-board diagnostics and status reporting, which facilitate troubleshooting and system monitoring. These features significantly reduce downtime and maintenance costs.
The PXI-7813R supports multiple communication interfaces, including GPIB, USB, and Ethernet, providing flexibility in system connectivity and integration with various test and control systems. This versatility enhances its applicability across different industries and applications.
