The ABB PFTL101BE 2.0KN is a tension load cell used to accurately measure and control the tension of material in production lines to ensure that the material maintains a constant tension during processing, transfer and winding.
The ABB PFTL101BE 2.0KN Tension Load Cell is a highly accurate and reliable industrial automation control component from ABB. The load cell is primarily used on production lines, especially in applications where precise control of strip or web tension is required, such as metalworking, paper, textiles, etc. The following is a description of the ABB PFTL101BE 2.0KN Tension Load Cell:
Supply voltage and design characteristics:
The ABB PFTL101BE 2.0KN Tension Load Cell is supplied with a supply voltage of DC24V (±5% fluctuation allowed), which ensures stable operation of the device.
The external dimensions of the load cell are 35mm (W) x 110mm (H) x 75mm (D), and the mounting is on a 35mm rail, suitable for standard rail mounting, which provides excellent installation flexibility.
The protection rating is IP20 for general industrial environments, but additional protection may be required for dusty or waterproof environments.
Performance and Reliability:
Its operating temperature range is from -20°C to +55°C, which is suitable for a variety of harsh industrial environments and guarantees the reliability of the equipment in critical environments.
The high reliability stems from its high-quality materials and manufacturing process, ensuring that the sensor can operate continuously for long periods of time without frequent repairs or replacement due to material fatigue or other common problems.

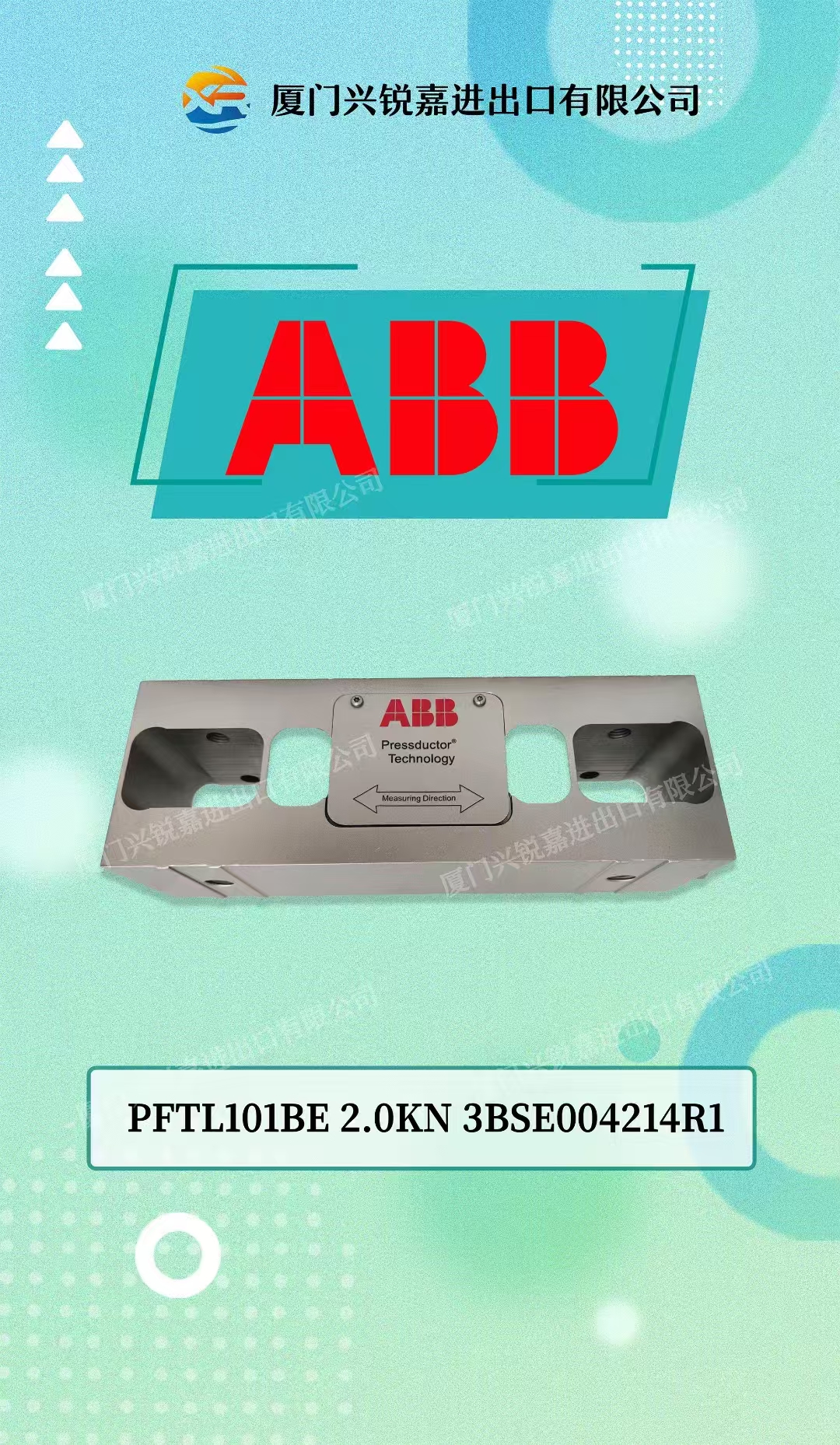

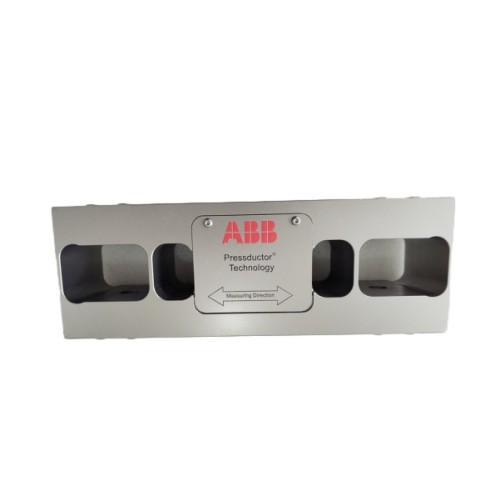

Image Reference:
Application areas and role:
The sensor is widely used in many fields such as CNC machinery, metallurgy, petrochemical and so on. In CNC machinery, it ensures accurate feeding of materials during machining; in metallurgy, it is used to control the precise tension of heavy materials to prevent material breakage or overstretching.
The main function is to control the tension of the material in the production line to prevent material damage or quality degradation during processing or transfer. Real-time monitoring and adjustments ensure stability of the material handling process and consistency of product quality.
Installation and Maintenance:
Easy to install, it can be easily mounted in the control system through 35mm guide rail. Due to its compact design, the sensor takes up little space and is easy to integrate in locations where space is limited.
Maintenance: Due to its highly reliable design, the usual maintenance needs are low. Regular checking of the connections and cleaning of the sensor surfaces are sufficient, eliminating the need for frequent specialized maintenance.
Safety protection and user interface:
The sensors are equipped with features such as overload and short-circuit protection to ensure the safety of the equipment and its operators. These safety features allow the sensors to operate reliably even in high-pressure and high-risk environments.
Although the user interface is not described in detail in the technical specifications, it is expected that the sensor will be equipped with an easy-to-understand and operate interface that allows the operator to easily read data and set parameters, in accordance with the general design standards of ABB products.
