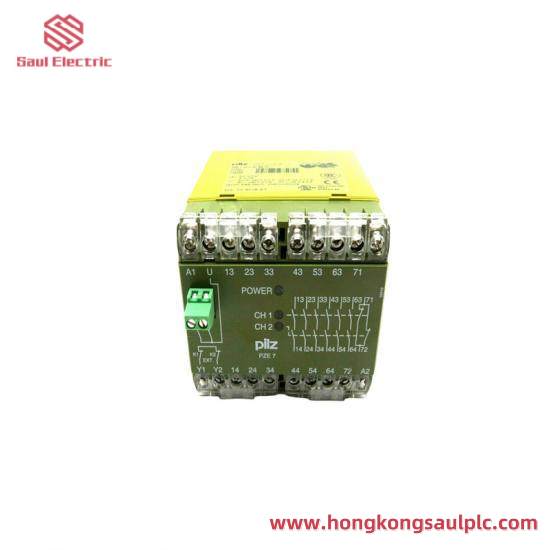

PILZ PZE7 24VDC 6S1O: Safety Relay for Industrial Control Systems

Operating Voltage:24VDC

Contact Configuration:6S1O

Current Rating:10A @ 24VDC

Relay Type:SPDT

Insulation Voltage:300VAC

Operating Frequency:50Hz / 60Hz

Load Capacity:24VDC: 10A, 250VAC: 1A, 250VDC: 1A

Operating Temperature Range:-25°C to +55°C

Storage Temperature Range:-40°C to +70°C

Enclosure Type:IP20

Dimensions (WxHxD):52 x 52 x 25 mm

Weight:40 g

    The Pilz PZE7 SAFETY RELAY is specifically engineered to provide unparalleled safety control within industrial automation environments. With its robust design and high operational reliability, it is suitable for a wide range of industrial applications requiring precise and dependable switching capabilities.

    Featuring a versatile relay configuration of 6S1O, this relay offers exceptional flexibility in managing various types of loads including inductive, capacitive, and resistive circuits. The relay’s capacity to handle up to 10A at 24VDC ensures efficient power distribution and load management.

    The device operates within a temperature range of -25°C to +60°C, ensuring stable performance in diverse environmental conditions. It can be stored safely within a temperature range of -40°C to +85°C, making it ideal for both indoor and outdoor installations.

    The Pilz PZE7 is designed with an IP20 enclosure type, providing basic protection against dust and splashes from liquids. This ensures the relay remains functional and reliable in harsh industrial settings, safeguarding against potential damage caused by external factors.

    This safety relay is compatible with both AC and DC power supplies, offering versatility in installation and integration into existing electrical systems. It is a critical component in ensuring the safety of personnel and machinery in automation processes, contributing to overall operational efficiency and compliance with international safety standards.
