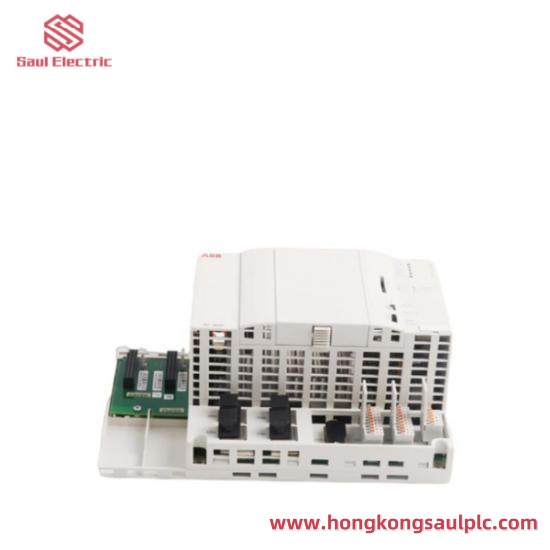

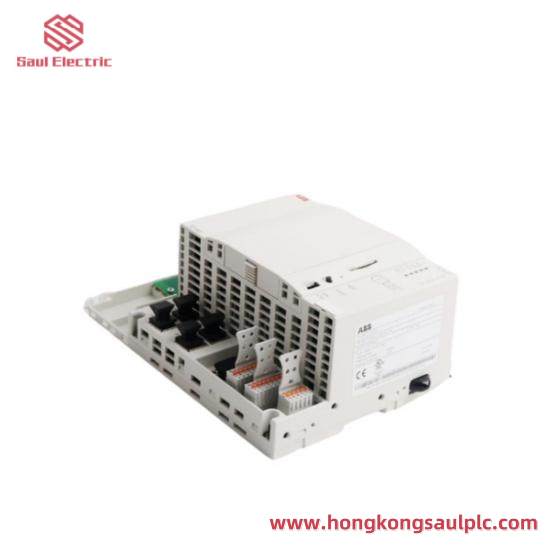

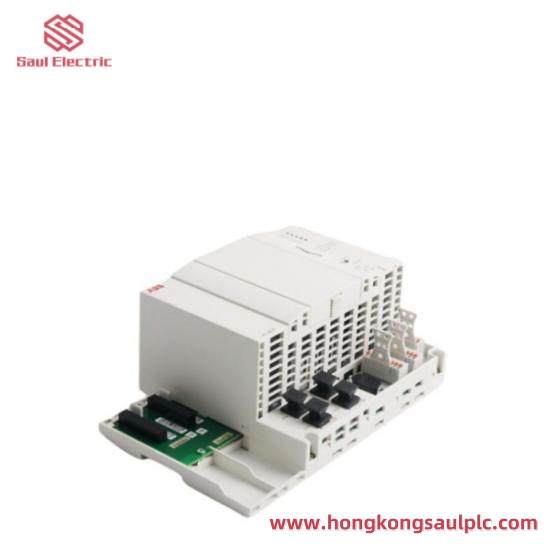

ABB PM902F 3BDH001000R0001 CPU module

Brand:ABB

Model:PM902F

Series:3BDH001000R0001

Module Category:Central Processing Unit

Operating Voltage:220 V

Output Frequency:50 kHz

Certified Product:PM902F 3BDH001000R0001

Place of Origin:Sweden

1. Technical features
ABB PM902F is equipped with a CPU clock speed of 800 MHz, 24 MB of controller memory and 8 MB of battery buffer SRAM, which is capable of quickly processing complex control logic and data operations. In addition, it supports a variety of communication protocols (e.g. Modbus TCP, PROFINET IO, EtherNet/IP, etc.) to ensure efficient communication with other devices.

2. Powerful interface capability
The PM902F module is equipped with four Ethernet interfaces and multiple serial interfaces (e.g., RS-485, RS-232C) to support the connection of a wide range of devices, such as remote I/O, transmitters, and actuators. In addition, it provides support for up to 1500 I/O points for complex industrial control systems.

3.Modularized design
PM902F adopts a modular design, which allows users to flexibly expand functional modules according to their needs, such as adding communication interface modules or I/O modules. This design not only improves the flexibility of the system, but also reduces the maintenance cost.

1.Industrial Automation
PM902F is widely used in industrial automation, such as automation control of chemical manufacturing, oil refining, power generation, printing presses and injection molding machines. Its high-performance processor and rich interfaces enable it to handle complex control tasks efficiently.

2.Process Control
In the field of process control, PM902F is capable of realizing precise control of parameters such as temperature, flow, pressure, etc., and supports a variety of control modes (e.g. position control, speed control and torque control).

3.Distributed Control System
PM902F is also suitable for Distributed Control System (DCS) and can be combined with other modules to form a complete control system to meet the complex needs of large industrial projects.

4 Diversified Communication Capabilities
The PM902F supports a wide range of communication protocols and interface types, enabling easy integration into different industrial environments. This is especially important in complex systems that require multi-protocol support.

5. Flexible modular design
The modular design of the PM902F enables it to flexibly expand functional modules according to demand, which has obvious advantages when dealing with diverse industrial application scenarios.

6. User-friendly programming environment
PM902F supports PLCopen programming languages (including structured text, ladder diagrams and continuous function diagrams), providing users with flexible programming options.
