Summary
The ABB REF542plus is a powerful, flexible and reliable digital feeder protection and measurement and control unit. It plays an important role in increasing the reliability of power distribution systems, reducing operating costs and improving power quality.
Scan the QR code below to communicate directly one-on-one and get a quick quote for you!

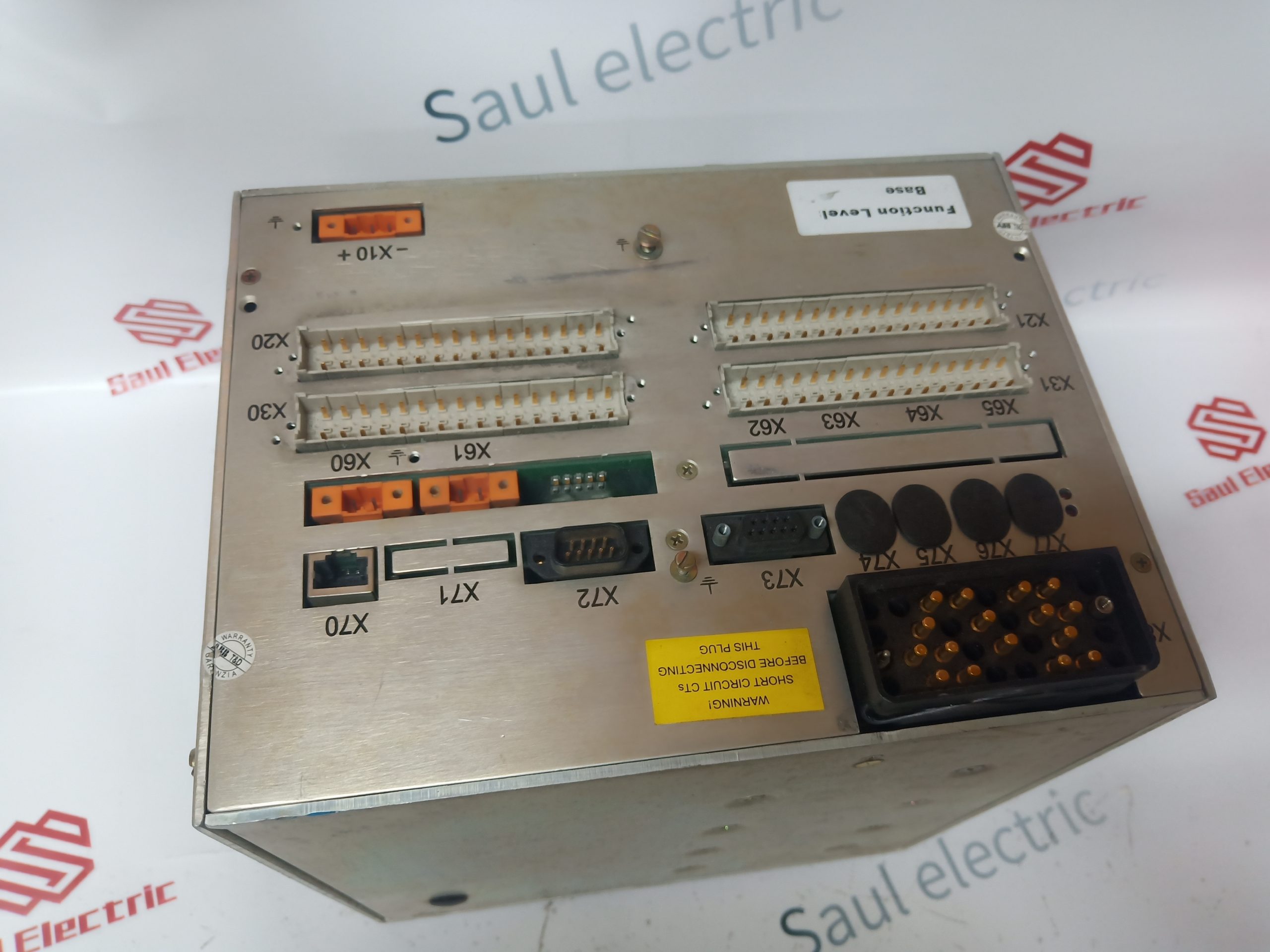

ABB REF542plus Multifunctional Protection and Switching Control Unit
**Control function:
Switching control
Signal control
Interlock control
**Communication functions:
Serial communication
Ethernet communication
MODBUS protocol
IEC 61850 protocol
Product structure

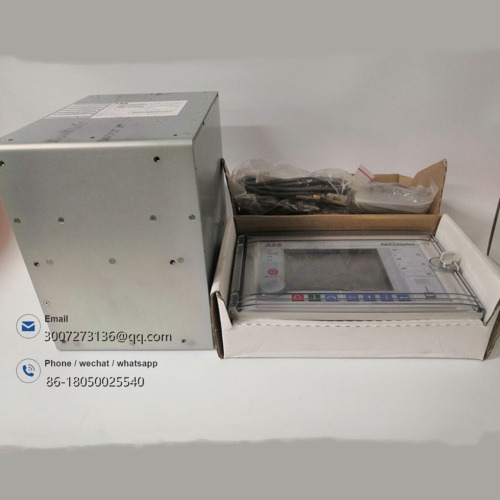

The REF542plus typically consists of two parts: a host computer and a human-machine interface (HMI). The mainframe handles protection, measurement and control functions, while the HMI is used for displaying device status, configuring parameters and for human-machine interaction.
Pictures are for reference only, not representative of the actual situation.
Applications
The REF542plus is widely used in medium-voltage power distribution systems in the power, petrochemical, metallurgical and construction industries.
For example, it can be used for:
Feeder protection in distribution substations
Internal power distribution systems in industrial companies
Power distribution systems in data centers
Advantages
Improve power supply reliability: Reduce outage time and improve power supply reliability through fast and accurate fault detection and isolation.
Reduced operating costs: Reduce operating costs by optimizing equipment operating status and improving energy efficiency.
Improvement of power quality: Improvement of power quality by monitoring and controlling grid parameters, increasing the reliability of power consuming equipment.
Improve the automation level: By integrating into the power distribution automation system, it realizes remote monitoring, fault diagnosis and automatic control, and improves the automation level of the power distribution system.
Main Features
Multifunctionality: In addition to traditional protection functions (such as over-current, over-voltage, distance protection, etc.), it also has functions of measurement, control, monitoring and distribution automation.
Flexibility: Through the programmable environment, users can flexibly configure various protection and control solutions according to actual needs.
Reliability: Adopting advanced digital signal processing technology, with high reliability, high precision and anti-interference ability.
Ease of use: Provide friendly user interface, convenient configuration and operation.
Extensibility: Supports a variety of communication interfaces and can be easily integrated into various automation systems.
Application Areas
Feeder Protection: Provide comprehensive feeder protection functions to ensure safe and stable operation of the power grid.
Transformer protection: Protect transformers against overload, overheating, ground fault, etc.
Motor protection: protects the motor against overload, overheating and stalling.
Distribution automation: as an important part of the distribution automation system, it realizes remote monitoring, fault diagnosis and automatic reclosing.
