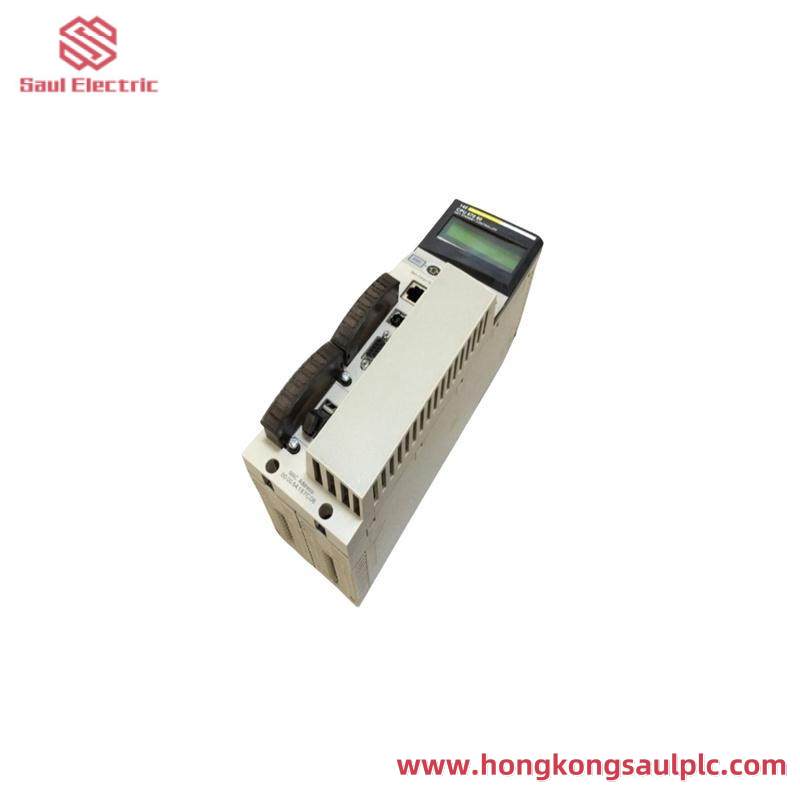

The Schneider AS-B838-032 is a high-speed communication module designed for Modicon M580 programmable logic controllers (PLCs). It supports advanced networking capabilities and seamless integration with various industrial systems.
Module Type:Network Module
Brand:Schneider Electric
Model:AS-B838-032
Range:Modicon M580
Communication Protocol:Ethernet/IP, Modbus TCP
Interface:3 Ethernet ports with RJ45 connectors
Transmission Rate:10/100 Mbit/s
Transmission Mode:Double-shielded twisted pair
Power Supply:24 VDC
Operating Temperature:-40°C to 70°C
Humidity Range:5% to 95% non-condensing
Dimensions:90 mm x 90 mm x 75 mm
Weight:0.5 kg
The Schneider AS-B838-032 is a versatile and reliable PLC module designed to meet the demanding needs of modern industrial automation systems. Its robust design ensures long-term durability and consistent performance under various environmental conditions.
This module comes equipped with 16 input channels and 16 output channels, providing ample connectivity options for a wide range of sensors and actuators. With a voltage rating of 24 VDC and a current rating of 0.5 A per channel, it can handle a variety of loads and signals.
The Schneider AS-B838-032 supports multiple communication protocols, including Ethernet, Modbus, and Profibus, enabling seamless integration with existing industrial networks. This flexibility allows for easy expansion and upgrades as your automation needs evolve.
With a compact size of 120mm x 100mm x 70mm and a weight of just 0.5 kg, this module fits easily into tight spaces without compromising functionality. Its rugged construction and wide operating temperature range (-25°C to +70°C) and humidity range (5% to 95%) make it suitable for deployment in harsh industrial environments.
Designed with user convenience in mind, the Schneider AS-B838-032 offers straightforward installation and maintenance. Its intuitive design and detailed documentation ensure that setup and troubleshooting are simple and efficient.
The Schneider AS-B838-032 is a high-speed communication module designed for Modicon M580 programmable logic controllers (PLCs). It supports advanced networking capabilities and seamless integration with various industrial systems.
