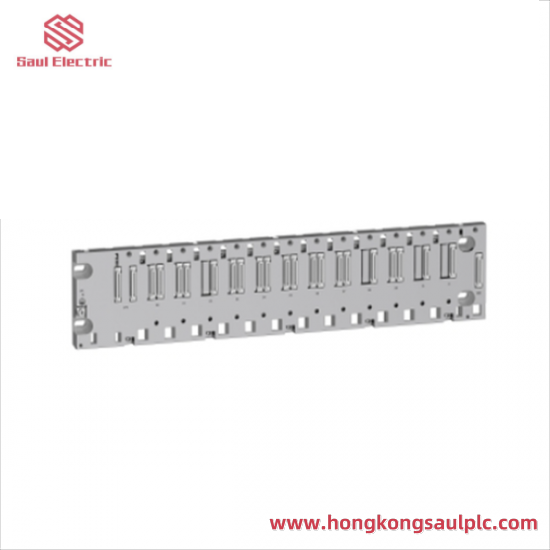

The Schneider BMEXBP1200 Ethernet backplane is designed for seamless integration with Modicon X80 automation platforms, offering enhanced connectivity and performance in industrial control systems.
Product Type:Ethernet Communication Interface
Product ID:BMEXBP1200
Schneider Type Designation:Other
Range of product:Modicon X80 Accessory / separate part
Accessory / separate part type:Rack
Number of slots:8 bus X + Ethernet, 4 bus X
Power consumption in W:283 mW (3.3 V DC), 3.9 W (24 V DC)
Electrical connection:1 connector (XBE) expansion module
Current consumption:164 mA (24 V DC), 86 mA (3.3 V DC)
Net weight:1.377 kg
The Schneider BMEXBP1200 Ethernet Backplane is designed for seamless integration into complex industrial automation systems, providing a robust communication backbone with its 8 bus X + Ethernet and 4 bus X slots.
Engineered with high-efficiency power consumption, this backplane ensures minimal energy loss during operation, making it suitable for extended usage in various industrial environments.
With its compatibility across the Modicon X80 platform, the BMEXBP1200 seamlessly supports diverse automation applications, enhancing system scalability and flexibility.
Featuring a durable and compact design, the backplane is meticulously crafted to withstand harsh industrial conditions, ensuring reliability and longevity in production environments.
Installation is straightforward with its single connector (XBE) expansion module, simplifying setup processes and reducing downtime for maintenance or upgrades.
The Schneider BMEXBP1200 Ethernet backplane is designed for seamless integration with Modicon X80 automation platforms, offering enhanced connectivity and performance in industrial control systems.
