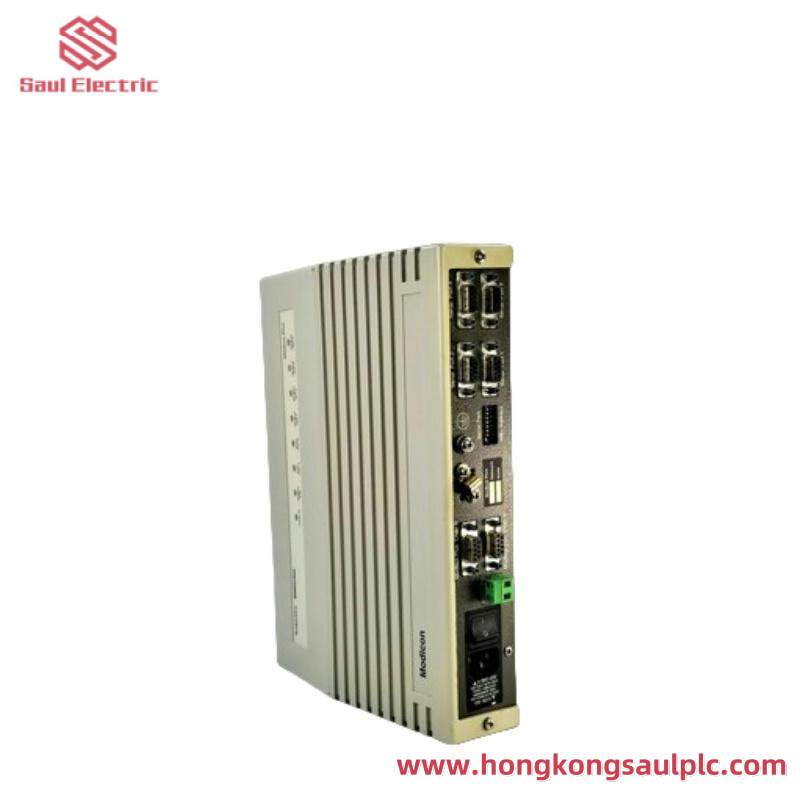

The Schneider NWBM85C002 Modicon Bridge/Multiplexer Module is a high-performance solution designed for seamless integration with Modbus protocols, enabling efficient communication between diverse industrial systems.
Brand:Schneider Electric
Model:NWBM85C002
Submodel:BM85C002
Category:Bridge/Multiplexer Module
Protocol:Modbus
Operating Range:10-30 VDC
Current Consumption:Max. 20 mA
Communication Interface:RS485
Number of Channels:8
Input Voltage:24 VDC
Output Voltage:24 VDC
Load Capacity:Up to 1 A per channel
Communication Speed:9600 bps
Power Supply:12-24 VDC
Environmental Conditions:-20°C to +60°C
Dimensions:120mm x 100mm x 50mm
Weight:200g
Connection:DIN Rail
Protocol Compatibility:Modbus RTU, ASCII, TCP
The Schneider NWBM85C002 is meticulously designed to enhance connectivity in complex industrial environments, offering seamless integration with a wide array of Modbus-compatible devices.
Engineered for robust performance under diverse environmental conditions, this module ensures reliable operation within the specified temperature range (-20°C to +55°C), ensuring durability and longevity in harsh industrial settings.
Featuring an IP20 rating, it safeguards against dust and splashes, maintaining operational integrity even in dusty or wet environments commonly found in manufacturing floors.
With its compact size (140 x 104 x 90mm L x W x H) and lightweight design, the NWBM85C002 is easy to install and integrate into existing control systems without compromising on space or performance.
Backed by Schneider Electric’s commitment to quality and reliability, this module comes with comprehensive documentation and support, ensuring hassle-free setup and maintenance, thus minimizing downtime and maximizing productivity.
