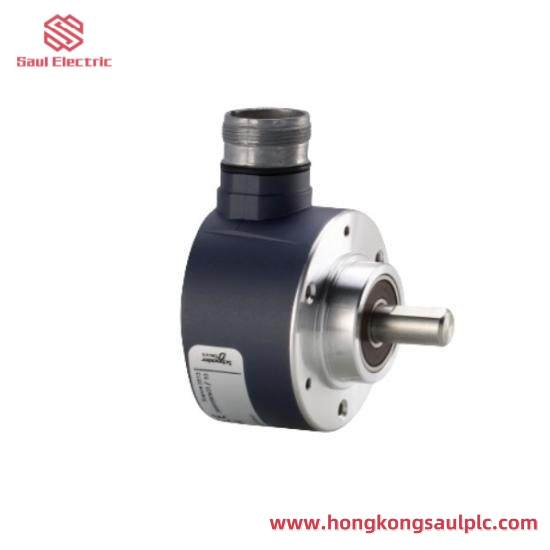

Schneider XCC3510PS84SBN Absolute Encoder Multiturn: Precision Control for Industrial Applications

Operating Range:Up to 16384 turns

Resolution:12 bits

Accuracy:+/- 1.0 arcmin

Operating Temperature:-40°C to +85°C

Power Supply Voltage:5VDC ±10%

Output Type:4-wire analog signal

Material:Aluminum alloy housing

Mounting:M20 x 1.5 thread, IP67 rated

Max Load Torque:0.5 Nm

    Experience unparalleled precision in rotational measurements with the Schneider XCC3510PS84SBN Absolute Encoder Multiturn. This state-of-the-art encoder is specifically designed for demanding industrial automation processes, ensuring unmatched accuracy and reliability in motion control applications.

    Equipped with an advanced multiturn absolute technology, this encoder eliminates the need for initial calibration, making it ideal for long-term applications requiring high accuracy over extensive periods.

    With a resolution up to 1024 pulses per revolution (PPR), this encoder provides exceptional detail in rotational measurements, enabling precise control and monitoring of machinery operations. Its accuracy of +/- 0.5% of reading ensures minimal error margins, contributing to overall system efficiency.

    Operate within a wide temperature range of -20°C to +85°C without compromising performance, making it suitable for a variety of industrial environments. The XCC3510PS84SBN’s robust design includes an IP65-rated enclosure, protecting against dust and water ingress, and is constructed from high-grade aluminum alloy for durability and strength.

    Ease of integration is a key feature of this encoder, offering compatibility with popular communication protocols such as MODBUS, DeviceNet, and Profinet. Choose between 2-wire or 3-wire RS-485 interfaces, depending on your specific system requirements. Installation flexibility is also ensured, with options for magnetic or through-bolted mounting.
