Siemens 2094 BC07-M05-S Control Module

Weight:22.3 lbs (10.1 kg)

Operating Voltage Range:360-480V nominal, 324…528V rms, 3-phase

Input Frequency:47-63 Hz

Safe Torque-off Feature:Yes

Series Availability:Three (3) series: A, B, and C

Overload Support:Standard in Series A

Peak Enhanced Options:Standard or Peak Enhanced in Series B and C

Bus Undervoltage:275V DC

Control Voltage:95…264V rmss, single-phase

Efficiency Rating:97%

Maximum Power Output:45 kilowatts

Continuous Output Current:67.7 A

Converter Power:45kW at 460V voltage

Inverter Current:45 A at 460V voltage

Power Dissipation:71-226 Watts

Bus Overvoltage:825V DC

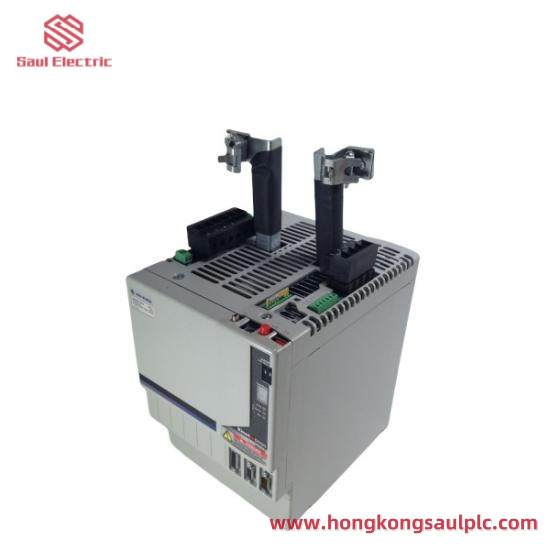

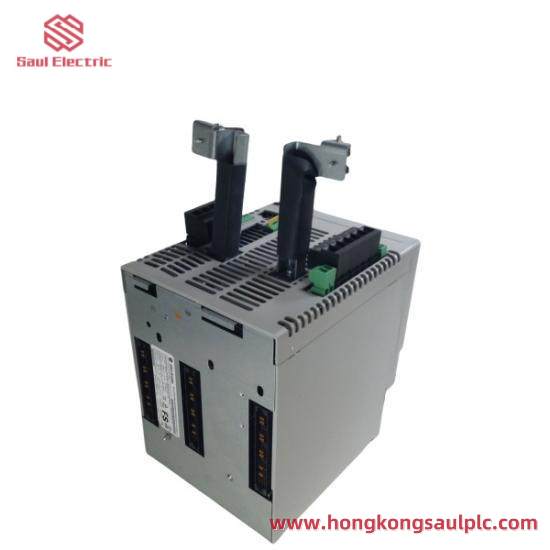

    The Allen-Bradley Kinetix 6000 Drive 2094-BC07-M05-S is a high-performance integrated axis module that delivers exceptional precision and reliability in industrial automation applications. Its modular design allows for seamless integration into existing systems, enhancing efficiency and productivity.

    Featuring an impressive 97% efficiency rating, this drive ensures minimal energy loss and optimal performance across a wide range of operating conditions. With its robust construction and advanced control capabilities, it is suitable for demanding environments requiring high accuracy and repeatability.

    Equipped with Safe Torque-off feature, the 2094-BC07-M05-S ensures safety by instantly stopping the machine when necessary, minimizing risks during maintenance or unexpected shutdowns. This feature is particularly valuable in industries where worker safety is paramount.

    The product supports three series (A, B, and C), offering customizable options such as standard overload support for series A, while series B and C provide standard or peak enhanced capabilities, catering to diverse application needs.

    Installation is made simple with an 80 mm clearance, facilitating easy setup and maintenance. The compact size and lightweight design make it suitable for space-constrained environments, while the durable construction ensures long-lasting performance.
