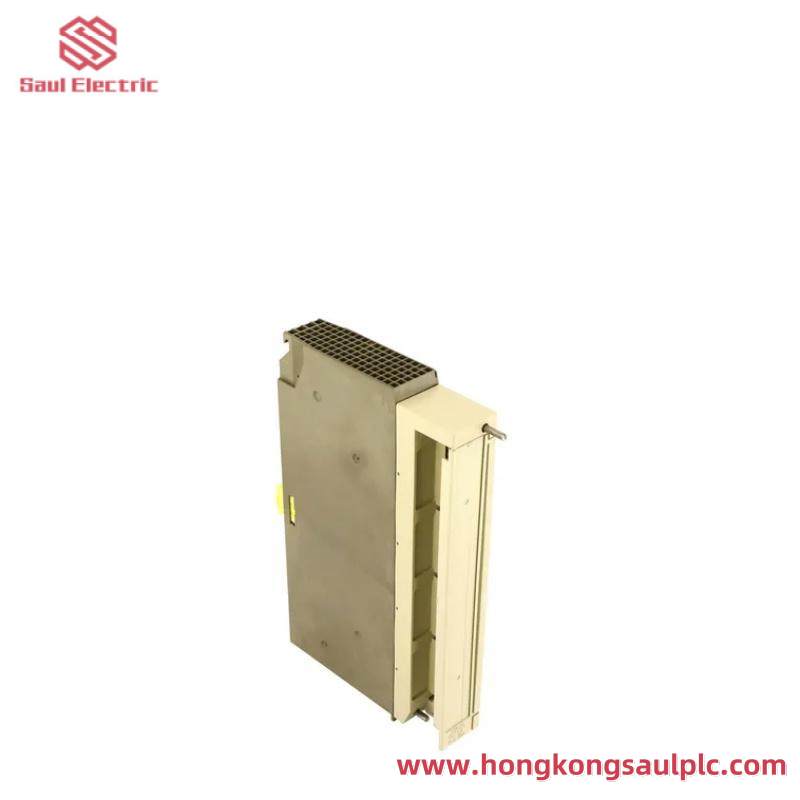

SIEMENS 6ES5470-7LA13 – High-Performance Analog Output Module for Industrial Automation

Module Type:Analog Output

Manufacturer:SIEMENS

Model Number:6ES5470-7LA13

Output Channels:16

Power Supply Voltage:DC 24V

Current Rating:0.5A per channel

Load Capacity:100Ω

Communication Protocol:Built-in Fieldbus Compatibility

Operating Temperature Range:-25°C to +60°C

Protection Class:IP20

Installation Type:Compact

Dimensions:86mm x 120mm x 70mm

Weight:0.18kg

    The SIEMENS 6ES5470-7LA13 Analog Output Module is a floating compact version, specifically engineered for use in SIMATIC S5 systems. This high-performance module is designed for industrial applications, ensuring reliable operation under demanding conditions.

    Featuring 16 independent analog outputs, this module supports versatile control scenarios across various industrial processes. Its +/- 10V voltage range allows for precise adjustments to meet specific operational needs.

    Built with precision and reliability in mind, the 6ES5470-7LA13 is equipped to handle a wide power supply voltage range of 8 to 36V DC, complemented by a current consumption of up to 20mA per channel. This ensures efficient power utilization and compatibility with diverse system configurations.

    With an operating temperature range from -25°C to +60°C, this module is engineered to withstand extreme environmental conditions without compromising performance. CE certification further attests to its compliance with international safety standards.

    Measuring at 57mm x 100mm x 110mm, and weighing approximately 0.2kg, the 6ES5470-7LA13 offers compactness and portability, making it suitable for space-constrained environments. It seamlessly integrates into industrial automation setups, enhancing efficiency and productivity.
