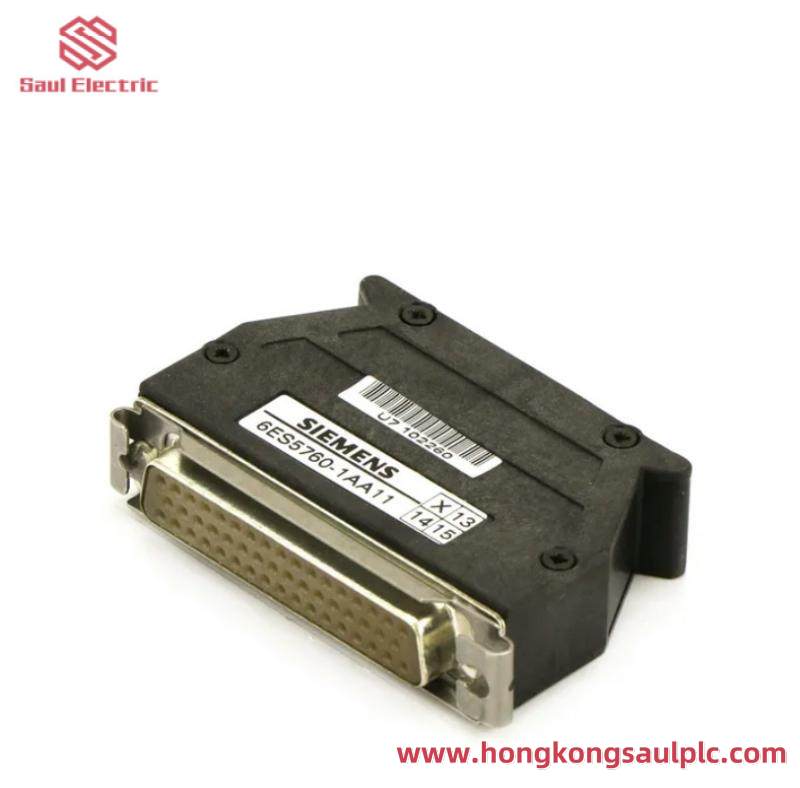

SIEMENS 6ES5760-1AA11 – S7-300 IM314 Terminal Resistor Connector

Connector Type:Terminal Resistor Connector

Model Number:6ES5760-1AA11

Application:S7-300 Controllers

Weight:0.04 kg

Dimensions:20mm x 20mm x 10mm

Operating Temperature Range:-20°C to +60°C

Material:High-grade brass and copper

Insulation Rating:IP20

Connector Style:Snap-In

Cable Compatibility:Up to 16 AWG

    The SIEMENS 6ES5760-1AA11 is specifically engineered for seamless integration with S7-300 controllers, enhancing the reliability and accuracy of signal processing in industrial automation systems. This connector provides an essential function of terminating signals at precise voltage levels, preventing signal reflection and improving communication integrity.

    Crafted from high-grade brass and copper, this connector ensures durability and resistance to wear and corrosion, even under challenging industrial conditions. Its snap-in design simplifies installation and maintenance processes, making it an efficient choice for various applications.

    With a compact size and lightweight construction, the 6ES5760-1AA11 is designed to fit neatly into the limited space available in control cabinets, optimizing the overall layout and reducing clutter. It supports a wide range of cable sizes up to 16 AWG, offering flexibility in cabling options.

    Operated within a temperature range of -20°C to +60°C, this connector is suitable for a variety of industrial environments. Its IP20 insulation rating provides protection against dust and splashes, ensuring operational safety and longevity.

    For optimal performance, the SIEMENS 6ES5760-1AA11 should be installed according to the manufacturer’s guidelines. Proper handling and regular inspection are recommended to maintain its effectiveness throughout its service life.
