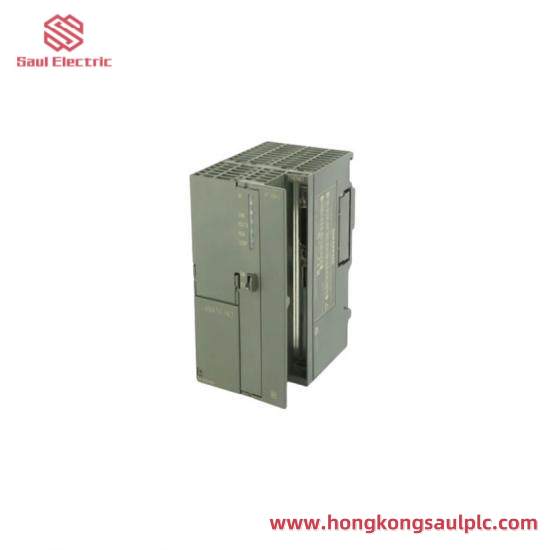

The Siemens CP 343-1 EX21-0XE0 Ethernet Module is designed for seamless integration into industrial automation systems, providing high-speed data transfer and network connectivity for efficient control and monitoring.
Type:Ethernet Module
Model Number:6GK7 343-1EX21-0XE0
Vendor:Siemens
Communication Protocol:TCP/IP, UDP, ISO
Operating Temperature:-20°C to +60°C
Power Consumption:1.5W (max.)
Dimensions:100mm x 90mm x 30mm
Connectivity:1 x RJ45 Ethernet connector
Compatibility:Simatic S7-300
Environmental Compliance:CE, UL, CSA, FCC
The Siemens 6GK7 343-1EX21-0XE0 Ethernet Communication Module is a versatile networking solution engineered to enhance productivity in modern manufacturing environments. This module seamlessly connects SIMATIC S7-300 systems to industrial Ethernet networks using advanced communication protocols such as TCP/IP and UDP, ensuring reliable and efficient data exchange. Designed with the latest industry standards, it supports multicast communication for optimized resource utilization and includes a 2-port switch ERTEC 200 for enhanced network management.
Featuring a compact yet robust design, this Ethernet module measures 105 x 90 x 30 mm, making it an ideal fit for space-constrained industrial setups. With a power consumption of up to 5.0 W, it operates efficiently without straining system resources. Its wide operating temperature range from -25°C to +60°C ensures reliability across various environmental conditions, complemented by a non-condensing relative humidity of 0% to 95%, allowing it to withstand harsh industrial environments.
For enhanced user experience and ease of deployment, the module supports SNMP diagnostics, enabling users to monitor network health and troubleshoot issues quickly. The integrated 10/100 Mbps Ethernet interface ensures high-speed data transfer capabilities, crucial for real-time data processing and control applications. The 6GK7 343-1EX21-0XE0 comes equipped with two RJ45 connections, providing flexibility in network configuration.
This Ethernet module is designed for seamless integration with SIMATIC S7-300 systems, facilitating the transition towards Industry 4.0 by enhancing connectivity and communication capabilities. It offers both Fetch and Write functionalities, enabling efficient data handling processes. Additionally, the SEND/RECEIVE capabilities support seamless data flow, making it suitable for a wide range of industrial automation tasks.
With its combination of advanced networking features, robust design, and compatibility with SIMATIC S7-300 systems, the Siemens 6GK7 343-1EX21-0XE0 Ethernet Communication Module is an indispensable component for modern industrial control systems, driving efficiency, reliability, and innovation in production lines.
