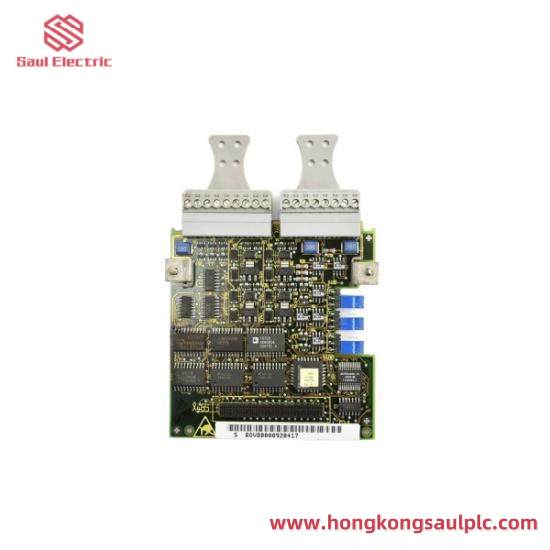

Siemens 6SE7090-0XX84-0KB0 EB1 Motion Control Expansion Board

Compatibility:Simovert MasterDrives

Type:Motion Control Expansion Board

Expansion Level:EB1

Delivery:Without Connectors and Operating Instructions

Dimension:140mm x 100mm x 30mm

Weight:0.23kg

Power Supply Voltage:230V AC

Communication Interface:Ethernet

Operating Temperature:-20°C to +50°C

Storage Temperature:-40°C to +85°C

    This expansion board is meticulously engineered for seamless integration into the SIMOVERT MASTERDRIVES system, enhancing its capabilities with additional I/O channels and advanced communication interfaces. It supports a wide range of industrial processes, from packaging machinery to robotics, ensuring smooth operation and high efficiency.

    The robust design ensures reliable performance under demanding industrial conditions, backed by Siemens’ commitment to quality and safety standards. With its extensive input/output capabilities, this board offers unparalleled flexibility in managing complex motion control tasks.

    The inclusion of 4 digital inputs allows for precise monitoring and control of various parameters, while the 2 analog inputs facilitate accurate measurement of physical quantities like speed and position. The 4 digital outputs enable direct control over actuators and other devices, optimizing system response time and reducing operational delays.

    Equipped with a generous memory capacity, the expansion board can store up to 256 KB of data, supporting advanced control algorithms and user-defined functions. This feature enables users to customize their systems according to specific application requirements, making it an indispensable tool for achieving tailored performance.

    The 6SE7090-0XX84-0KB0 EB1 Expansion Board is designed for operation within a temperature range of -10°C to +50°C, ensuring reliability in both cold and warm environments. Its IP20 environmental rating protects against dust and splashes, further enhancing durability in industrial settings.
