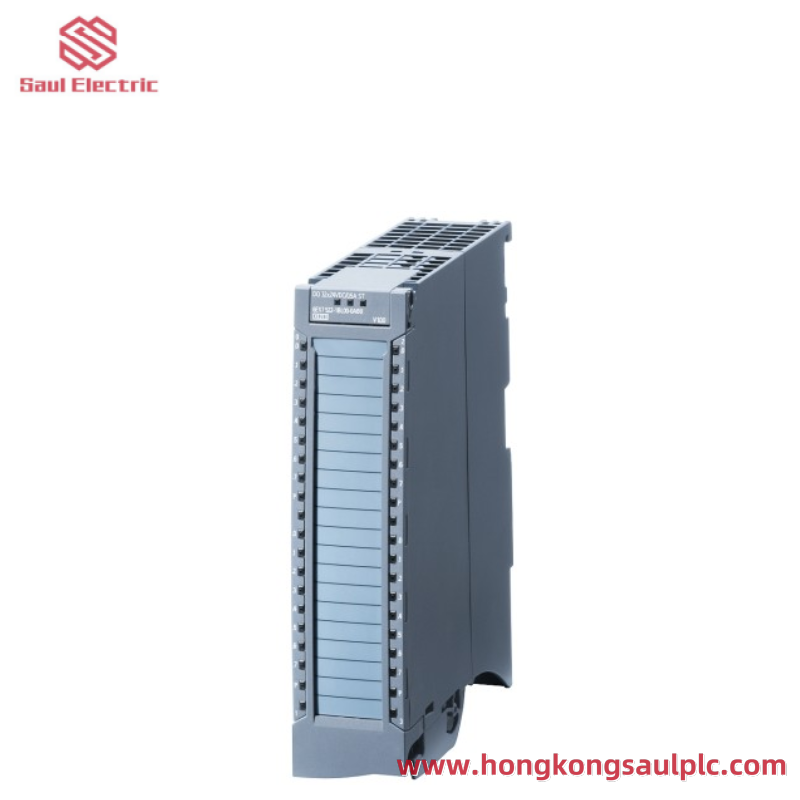

SIEMENS SIMATIC 6ES7522-5HH00-0AB0 Digital Output Module: Precision Control at the Core of Industry Automation

Model Type:Digital Output Module

Model Number:6ES7522-5HH00-0AB0

Manufacturer:SIEMENS

Net Weight:0.339 kg

Packaging Dimension:14.90 x 15.30 x 4.30 cm

Power Supply:230V 1 phase / 460V 3 phase

Channels:8x24V DC

Current Rating:0.5 A per channel

Max. Frequency:600 Hz

Protection Level:Complete

Diagnosis:Short-circuit to L+, Ground, Wire Break, Supply Voltage

Dimensions:Standard DIN rail mount

Connectivity:Single-channel diagnostics, front connector (screw terminals or push-in)

Lifecycle:Active (PM300)

    Crafted with precision, the SIEMENS 6ES7522-5HH00-0AB0 is a robust addition to any industrial control system. Its advanced digital output capability allows for direct control of actuators, relays, and other electrical devices, enhancing operational efficiency.

    Featuring 16 individually configurable channels, this module provides versatility and scalability to meet diverse application requirements. Each channel supports a maximum current rating of 5A, ensuring reliable performance even under heavy loads.

    The module is equipped with single-channel diagnostics, offering real-time monitoring and fault detection capabilities. This feature is crucial for maintaining system reliability and minimizing downtime, enabling proactive maintenance strategies.

    With its compact design and efficient heat dissipation, the SIEMENS 6ES7522-5HH00-0AB0 integrates seamlessly into existing control cabinets without occupying excessive space. Its compatibility with screw terminals ensures ease of installation and connectivity.

    Backed by SIEMENS’ commitment to quality and innovation, this digital output module is designed to withstand the harsh conditions often encountered in industrial settings. It’s an essential component for achieving optimal performance and reliability in modern automation systems.
