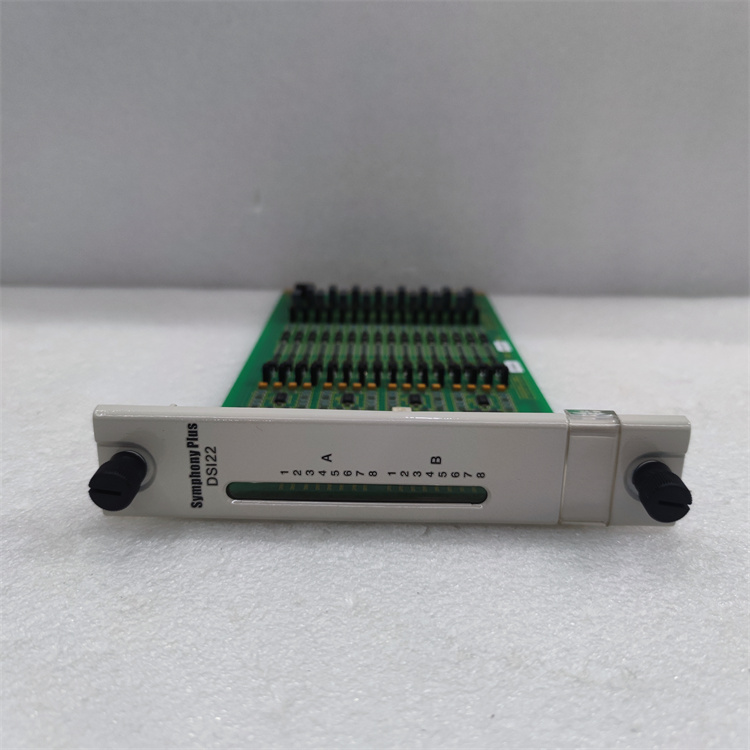

SPDSI22

ABB SPDSI22 is a powerful and reliable digital input module for industrial automation. It can convert digital signals from the field (e.g. switching, relay status, etc.) into digital signals and transmit them to PLC or other control systems for monitoring and controlling industrial processes.

Main Features
High channel count: Provides multiple digital input channels, which can collect multiple digital signals at the same time.
Flexible Configuration: Input type, filtering and other parameters can be flexibly configured according to different application requirements.
High Reliability: Adopts industrial-grade components for high reliability.
Easy to integrate: Can be easily integrated into ABB’s automation system.
Application Scenarios
Process control: Used in process control systems to collect digital signals such as switching and limit switches to realize process monitoring and control.
Data Acquisition: Used in data acquisition systems to collect various digital signals for data analysis and processing.
Equipment monitoring: Used in equipment monitoring system to monitor the running status of equipment, realize fault diagnosis and predictive maintenance.

Technical Parameters
Number of channels: 22
Input voltage: 24-120 VDC
Logic level: 0-5 VDC
Filter time: 10 ms
Response time: 5 ms
Isolation voltage: 1500 VDC

How to choose SPDSI22
Number of channels: Select the appropriate module according to the number of digital signals to be acquired.
Input Voltage: Determine the output voltage of the field device and select the appropriate module.
Environmental conditions: Consider the temperature and humidity of the working environment and select the appropriate module.

Frequently Asked Questions
What is the difference between the SPDSI22 and other brands of modules?
ABB SPDSI22 is characterized by high channel count, high reliability, easy integration and good compatibility with ABB automation systems.

How to configure SPDSI22?
Configuring SPDSI22 needs to be done by setting parameters using ABB’s programming software.

How is SPDSI22 installed?
SPDSI22 is usually installed in ABB’s control cabinets in a simple way.

Precautions
Grounding: Make sure the module is well grounded to prevent interference.
Avoid overloading: Do not exceed the rated input current of the module.
Regular maintenance: Check the module’s working condition regularly to ensure its normal operation.
