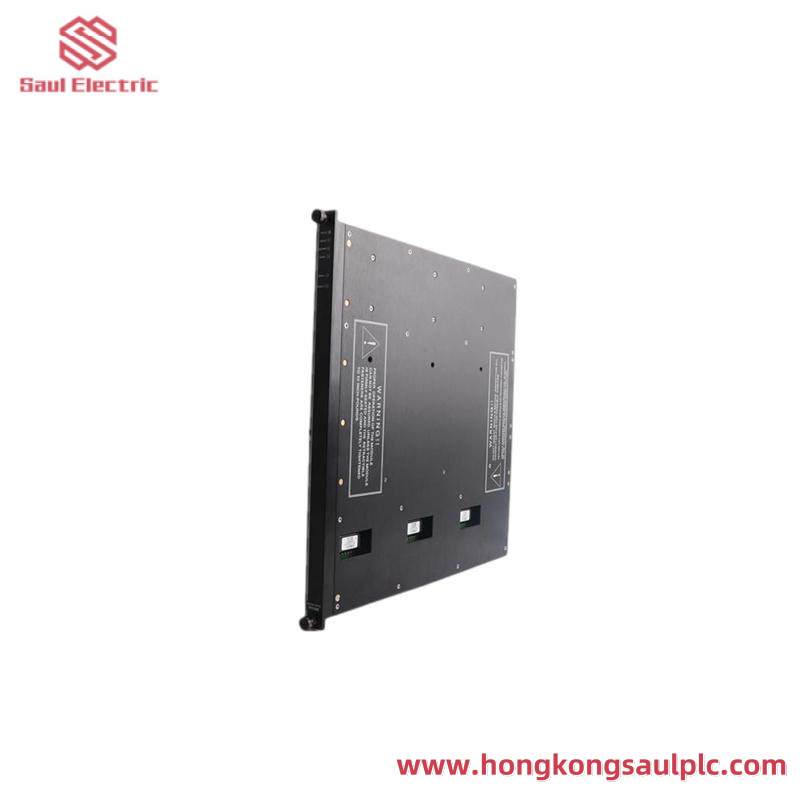

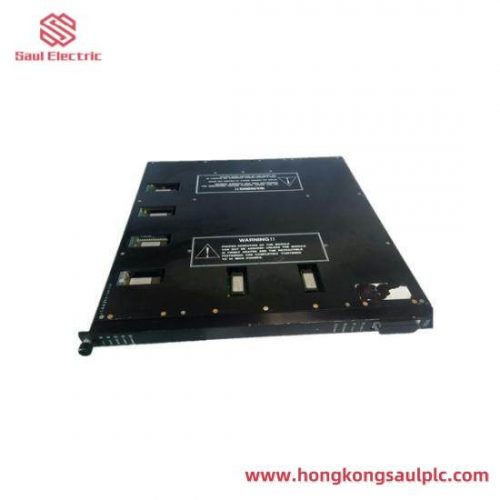

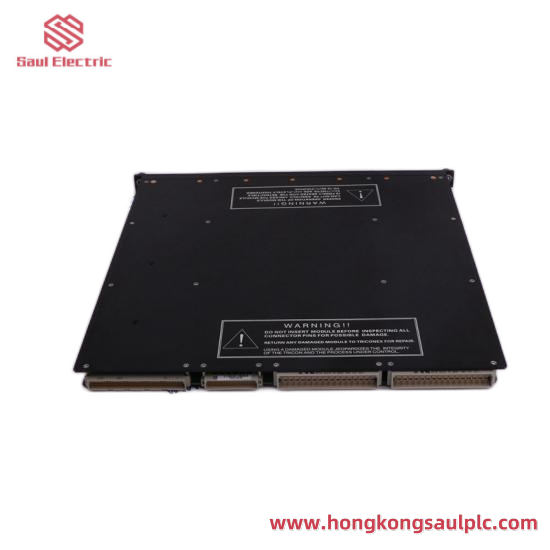

TRICONEX 3806E Input/Output Modules for Industrial Control Systems

Functional Features
Safety and reliability: Designed to meet high standards of safety, such as IEC 62443, and utilizing the Triple Modular Redundancy (TMR) principle to ensure continuous operation in the event of a failure.
Programmability: Programming is supported, allowing the user to configure the system according to specific application requirements and logic.
Real-time performance: The ability to respond to input signals at very high speeds enables real-time monitoring and control.
HART Filter: Some models of the 3806E include an integrated SIL 3 quality HART filter that “listens in” on data traffic and allows read-only access to field devices for increased system security.
Digital Input Functions: Multiple digital input signals can be received to meet a variety of input requirements, enabling real-time acquisition and processing of field device status information.

Categories:
Tags: , , ,

TRICONEX 3806E Input/Output Modules for Industrial Control Systems

Origin:TRICONEX

Order Number:TRICONEX 3806E

Custom Processing:Yes

Item No.:TRICONEX 3806E

Brand:TRICONEX

Model:TRICONEX 3806E

Operating Voltage:220 V

Output Frequency:30 kHz

Certified Product:TRICONEX 3806E

Series:TRICONEX 3806E

The TRICONEX 3806E Input and Output Module is engineered to deliver exceptional performance and reliability in demanding industrial environments. Its robust design ensures long-lasting operation under harsh conditions, making it suitable for a wide range of applications. This module is certified for safety and quality, providing peace of mind to users. With its precise signal processing capabilities, the TRICONEX 3806E is a cornerstone of modern industrial automation systems. Custom processing options are available to meet specific project requirements, ensuring optimal integration into existing control systems. Designed for ease of installation and maintenance, this module simplifies the setup process, allowing for quick deployment and minimal downtime. Whether you’re upgrading an existing system or building a new one, the TRICONEX 3806E is a reliable choice that will enhance your control system’s performance.

TRICONEX 3806E

The TRICONEX 3806E is a high performance industrial control module manufactured by Invensys (now part of Schneider Electric).

Product Overview
The TRICONEX 3806E is a powerful industrial control module for a wide range of industrial automation applications. Designed for use in Safety Instrumented Systems (SIS), the module plays a vital role in the monitoring and control of industrial processes.

Technical Specifications
Input Signals: Depending on the specific model, the 3806E can accept analog input signals such as 4-20mA or 20-320mA current loops for measuring process variables such as temperature, pressure, and flow.
Output Signals: For analog output modules, output signals in the range of 0-10V, 0-20mA, or 0-5V can be provided with an accuracy of ±0.1%.
Number of Channels: Typically has multiple input or output channels, allowing multiple signals to be monitored and controlled at the same time.
Isolation: Provides input/output isolation and channel-to-channel isolation to ensure system safety and stability.
Communication: Can communicate with other components within the Triconex system for system integration and synergy.

TRICONEX 3806E
