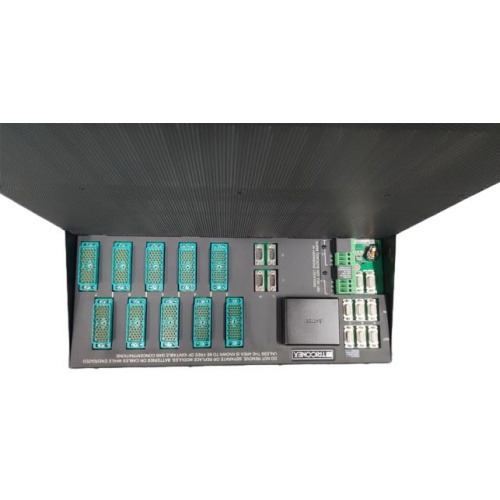

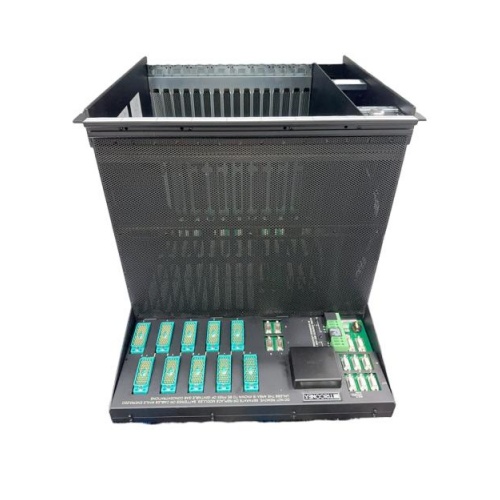

TRICONEX 8120E is a high-performance and highly reliable redundant control system framework widely used in industrial automation, energy, manufacturing and process control.
1. Technical features
1.1 Triple Module Redundancy (TMR) Architecture
TRICONEX 8120E adopts Triple Module Redundancy (TMR) technology, which is its core design concept. Each module operates independently and a voting mechanism ensures high system reliability. Even if one of the modules fails, the other two can continue to work, thus realizing a redundant design with no single point of failure.
1.2 High-performance Processor and Advanced Diagnostic Functions
The TRICONEX 8120E is equipped with an advanced 32-bit PowerPC 603e processor with a main frequency of up to 400MHz, 256MB of RAM and 2GB of storage, which is capable of efficiently handling complex control tasks. In addition, the system has a built-in self-diagnostic function that can detect and repair faults in real time without affecting production, ensuring continuous operation of the system.
1.3 Diverse Input and Output Interfaces
TRICONEX 8120E supports a variety of signal types, including analog signals, digital signals and pulse signals, which can meet the needs of different industrial scenarios. Its I/O module design is flexible and supports the expansion of up to 64 I/O modules, which is suitable for complex industrial control systems.
1.4 Wide temperature working environment and high reliability
The system is capable of stable operation in extreme environments, with an operating temperature range of -40°C to 70°C and a humidity range of 5% to 95% (non-condensing), making it suitable for high-risk industries such as oil and gas, chemical, and electric power.
2 Application Scenarios
2.1 Oil and gas industry
In the oil and gas industry, TRICONEX 8120E is used to monitor and control critical processes such as oil field development, refineries and natural gas processing. Its highly reliable and redundant design ensures the safety and continuity of the production process.
2.2 Chemical Industry
The chemical industry requires a high degree of safety and reliability. The TRICONEX 8120E’s advanced fault-tolerant technology and redundant design can effectively handle the complex processes in chemical production and ensure production safety.
2.3 Power industry
In the power industry, TRICONEX 8120E is widely used in the control system of power plants, providing highly reliable process control and safety protection functions to ensure the stable operation of the power system.
2.4 Other Industries
TRICONEX 8120E is also applied in many fields such as manufacturing, transportation, water treatment and mining, etc. With its high reliability and flexibility, it can meet the special needs of different industries.
3. Advantage Analysis
3.1 High Reliability and Safety
TRICONEX 8120E is based on Triple Module Redundancy (TMR) technology, which ensures high reliability and safety of the system. Even if a module fails, the system still operates normally, avoiding production interruptions due to a single point of failure.
3.2 Flexibility and Expandability
The system adopts modular design, supporting the expansion of various input and output modules, communication modules and I/O modules, which can be flexibly configured according to specific needs and adapt to different industrial application scenarios.
3.3 Efficient diagnosis and maintenance
TRICONEX 8120E has a built-in self-diagnostic function that can detect and repair faults in real time without affecting production. In addition, hardware failures can be replaced online, further improving system availability and maintenance efficiency.
3.4 Multi-protocol support and compatibility
The system supports multiple communication protocols, such as EtherNet/IP, Modbus TCP, etc. It can be seamlessly integrated into existing control systems to ensure compatibility with other devices.
4. Summary
The TRICONEX 8120E is a high-performance, highly reliable redundant control system framework. With its advanced triple-module redundancy (TMR) technology, flexible modular design, and efficient diagnostic functions, the TRICONEX 8120E demonstrates excellent application value in the fields of industrial automation, energy, manufacturing, and process control. Whether in the oil and gas industry, chemical industry or power industry, TRICONEX 8120E can provide a stable and reliable solution to guarantee the safety and continuity of production processes.
